Photomultiplier tube module
|Photocathode Area Shape||Square|
|Photocathode Area Size||18 x 18 mm|
|Wavelength (Short)||300 nm|
|Wavelength (Long)||650 nm|
|Wavelength (Peak)||400 nm|

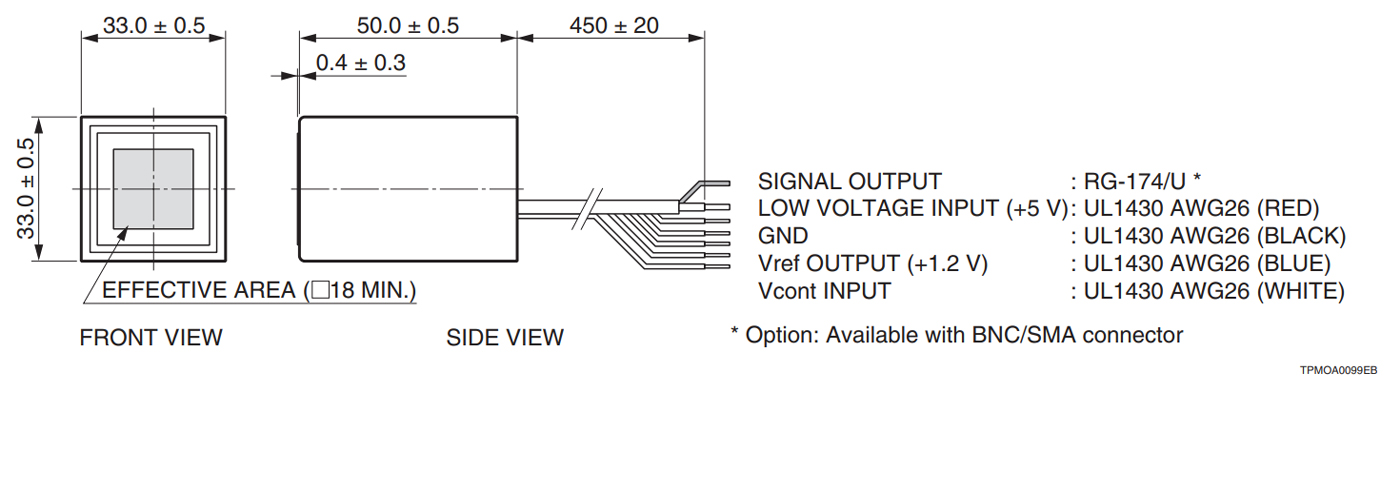

|Dimension (W x H x D)||33.0 x 33.0 x 50.0 mm|
|Input Voltage||+4.5 to +5.5 V|
|Max. Input Voltage||6 V|
|Max. Input Current||5 mA|
|Max. Output Signal Current||100 μA|
|Max. Control Voltage||+0.9 (Input impedance 1 M-ohm) V|
|Recommended Control Voltage Adjustment Range||+0.4 to +0.8 (Input impedance 1 M-ohm) V|
|[Cathode] Luminous Sensitivity Min.||110 μA/lm|
|[Cathode] Luminous Sensitivity Typ.||135 μA/lm|
|[Cathode] Blue Sensitivity Index (CS 5-58) Typ.||15.5|
|[Cathode] Radiant Sensitivity Typ.||130 mA/W|
|[Anode] Luminous Sensitivity Min||50 A/lm|
|[Anode] Luminous Sensitivity Typ.||135 A/lm|
|[Anode] Radiant Sensitivity Typ.||1.3 x 105 A/W|
|[Anode] Dark Current (after 30min.) Typ.||2 nA|
|[Anode] Dark Current (after 30min.) Max.||20 nA|
|[Time Response] Rise Time Typ.||1.6 ns|
|Ripple Noise (peak to peak) Max.||0.5 mV|
|Settling Time Max.||10 s|
|Operating Ambient Temperature||+5 to +50 ℃|
|Storage Temperature||-20 to +50 ℃|
