Photomultiplier tube module

H13661

The H13661 is a photomultiplier tube module containing a high-speed response 28-mm diameter head-on photomultiplier tube, and a high-voltage power supply circuit.

Photocathode Area Shape Round
Photocathode Area Size Dia.25 mm
Wavelength (Short) 300 nm
Wavelength (Long) 650 nm
Wavelength (Peak) 420 nm
Dimension (W x H x D) Dia. 35.0 x 105 mm
Input Voltage +4.8 to +5.5 V
Max. Input Voltage 6 V
Max. Input Current 6 mA
Max. Output Signal Current 100 μA
Max. Control Voltage +2.3 (Input impedance 1 MΩ) V
Recommended Control Voltage Adjustment Range +1.8 to +2.2 (Input impedance 1 MΩ) V
[Cathode] Luminous Sensitivity Min. 70 μA/lm
[Cathode] Luminous Sensitivity Typ. 95 μA/lm
[Cathode] Blue Sensitivity Index (CS 5-58) Typ. 10
[Cathode] Radiant Sensitivity Typ. 80 mA/W
[Anode] Luminous Sensitivity Min 1 A/lm
[Anode] Luminous Sensitivity Typ. 3 A/lm
[Anode] Radiant Sensitivity Typ. 2.5 x 103 A/W
[Anode] Dark Current (after 30min.) Typ. 1 nA
[Anode] Dark Current (after 30min.) Max. 20 nA
[Time Response] Rise Time Typ. 23 ns
Ripple Noise (peak to peak) Max. 0.1 mV
Settling Time Max. 10 s
Operating Ambient Temperature +5 to +50 ℃
Storage Temperature -20 to +50 ℃
Weight 101 g

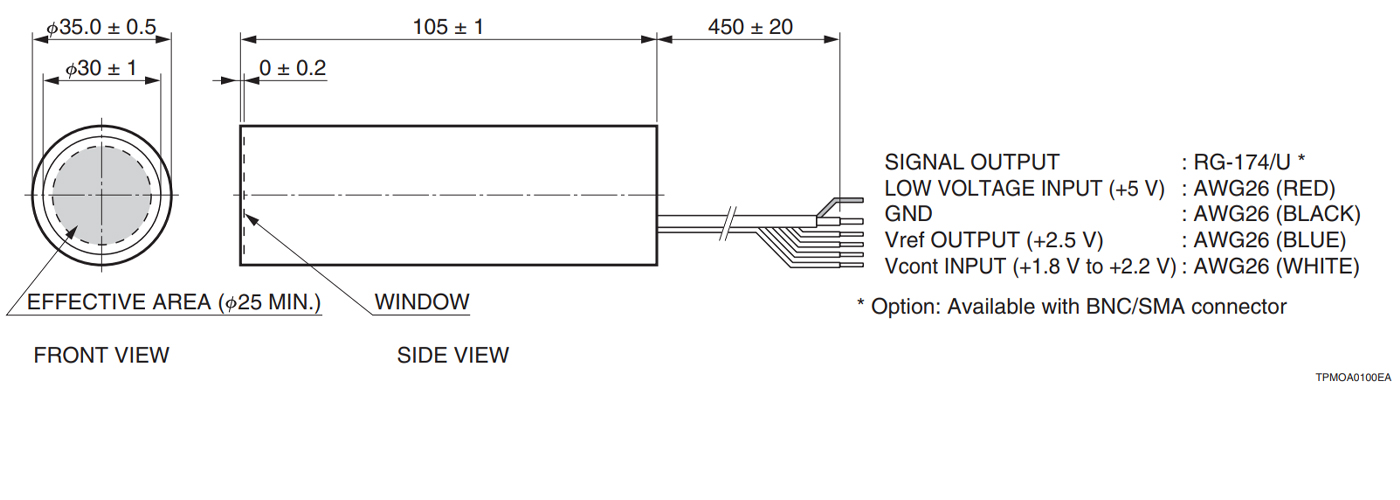

Dimensional outline (unit: mm)
