Photomultiplier tube module
The H14600-20 is photosensor modules containing a metal package PMT and a high-voltage power supply circuit. Despite the size nearly equal to photodiodes, this PMT delivers high gain, wide dynamic range, and highspeed response.
H14600 series : Pin output type
H14601 series : Cable output type
|Photocathode Area Shape||Round|
|Photocathode Area Size||Dia.8 mm|
|Wavelength (Short)||300 nm|
|Wavelength (Long)||920 nm|
|Wavelength (Peak)||630 nm|

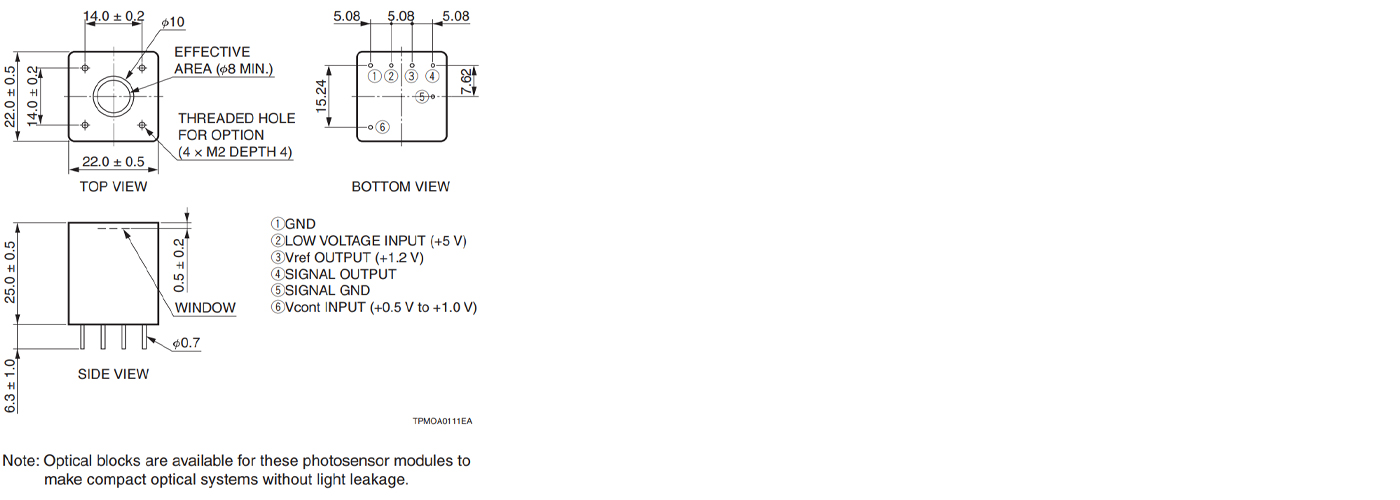

|Dimension (W x H x D)||22.0 x 25.0 x 22.0 mm|
|Input Voltage||+4.5 to +5.5 V|
|Max. Input Voltage||5.5 V|
|Max. Input Current||3.5 mA|
|Max. Output Signal Current||100 μA|
|Max. Control Voltage||+1.0 (Input impedance 1 M-ohm) V|
|Recommended Control Voltage Adjustment Range||+0.5 to +1.0 (Input impedance 1 M-ohm) V|
|[Cathode] Luminous Sensitivity Min.||350 μA/lm|
|[Cathode] Luminous Sensitivity Typ.||500 μA/lm|
|[Cathode] Red/White Ratio Typ.||0.45|
|[Cathode] Radiant Sensitivity Typ.||78 mA/W|
|[Anode] Luminous Sensitivity Min||140 A/lm|
|[Anode] Luminous Sensitivity Typ.||500 A/lm|
|[Anode] Radiant Sensitivity Typ.||0.8 x 105 A/W|
|[Anode] Dark Current (after 30min.) Typ.||10 nA|
|[Anode] Dark Current (after 30min.) Max.||100 nA|
|[Time Response] Rise Time Typ.||0.6 ns|
|Ripple Noise (peak to peak) Max.||0.2 mV|
|Settling Time Max.||10 s|
|Operating Ambient Temperature||+5 to +50 ℃|
|Storage Temperature||-20 to +50 ℃|
