Photomultiplier tube module

C13953-01

The C13953-01 is a photomultiplier module that consists of a 13 mm diameter head-on photomultiplier tube coupled to a plastic scintillator, a high voltage power supply circuit, and a photon counting circuit. The C13953-01 operates at ±5 V input and outputs logic pulses proportional to the incident radiation dose.

Features

  • Including a plastic scintillator
  • High sensitivity
  • ±5 V operation
  • Compact and lightweight
  • Logic pulse output

Applications

  • β-ray detection
  • Soft X-ray detection
  • Dust particle measurement (e.g. PM2.5)

Specifications

Parameter Description / Value Unit
Input voltage ±5 V
Maximum input voltage ±5.5 V
Input current (*1) Typ. +100/-30 mA
Effective area φ12 mm
Light-shielding film Aluminum deposited film -
Scintillator Plastic scintillator (thickness: 0.5 mm) -
Pulse-pair resolution 10 ns
Input / output division ratio 1/2, 1/4, 1/8, 1/16, 1/32 (Initial setting: 1/8) -
Count linearity (*2) 1 × 107 s-1
Maximum number of output pulses (when divided by 8) 1.25 × 106 s-1
Output format Open collector -
Maximum output withstand voltage +15 V
Input / output connector MZW-1-1-2PM (MAC8) -
Operating ambient temperature / humidity (*3) 0 °C to +40 °C / Below 80% -
Storage ambient temperature / humidity (*3) -15 °C to +50 °C / Below 85% -
Weight 63 g

Notes

*1: When open collector output is not connected

*2: Random pulse, at 10 % count loss

*3: No condensation

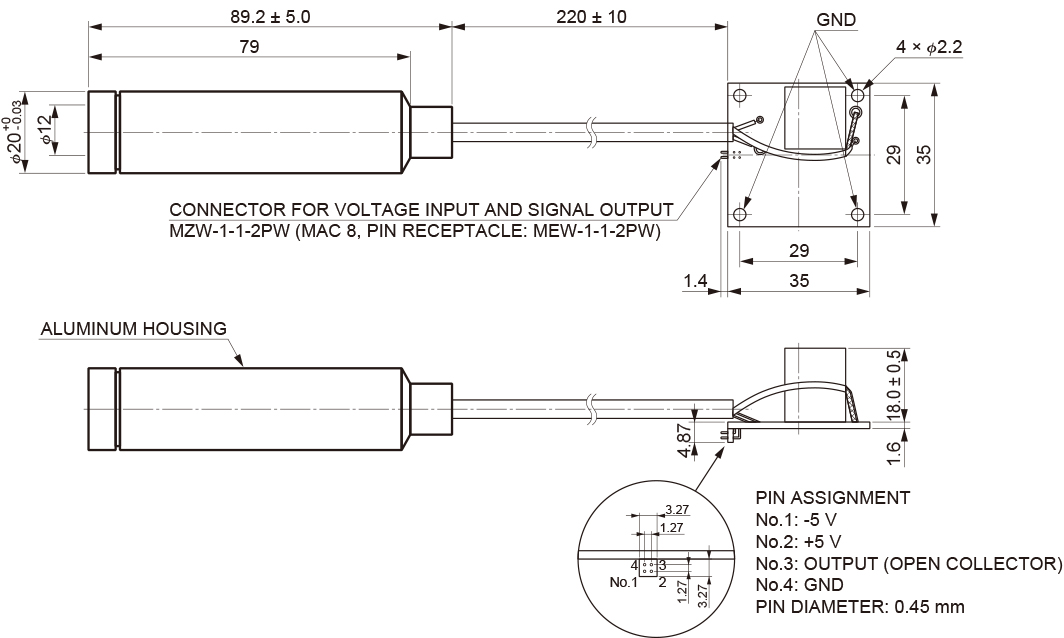

Dimensional outline (Unit mm)

C13953-01
