Wide dynamic range PMT module

H13126-03

This H13126-03 is a wide dynamic range photomultiplier tube module with 3 signal outputs containing a PMT with effective area of 22-mm diameter and circuits of a high-voltage power supply, a high-speed photon counting and amplifiers. One output of this unit is digital for counting single photons and the other two outputs are analog for converting the output signal voltage to the number of photons. By bringing together these three results measured at the same time, a dynamic range of 10 orders of magnitude can be achieved at pulsed input light conditions.

Features

●Maximum counting rate: more than 5 x 10¹¹ s⁻¹

●DC to 20 MHz bandwidth

●Compact body

●Low dark count type

Specifications

Parameter Description / Value Unit
Input voltage +/-15 V
Maximum input current(at ±15 V)
+200 / -50 mA
PMT Effective photocathode area Dia. 22 mm
Spectral response range 200 to 650 nm
Wavelength of maximum sensitivity 375 nm
Typical count sensitivity 200 nm 5.5 x 10⁴ s⁻¹・pW⁻¹
300 nm 4.4 x 10⁵
400 nm 5.4 x 10⁵
500 nm 3.1 x 10⁵
600 nm 6.7 x 10⁴

Photon counting

output

Count linearity 5 x 10⁶ s⁻¹
Dark count *¹ Typ. 50 s⁻¹
Output pulse width 8 ns
Output pulse height 2.5 V
Recommended load resistance 50 Ω

Low range

analog (AMP) output

Count-analog conversion factor 1 V / 4 x 10⁸ s⁻¹ -
Frequency bandwidth DC to 20 MHz
Maximum output signal +3 (at 1 kΩ load) V
Output offset +/-1 mV
DC linearity *² +/-2.5 %
Output impedance 50 Ω

High range

analog (AMP) output

Count-analog conversion factor 1 V / 1.7 x 10¹¹ s⁻¹ -
Frequency bandwidth DC to 20 MHz
Maximum output signal *³ +3 (at 1 kΩ load) V
Output offset +/-1 mV
DC linearity *² +/-20 %
Output impedance 50 Ω
Operating ambient temperature *⁴ +5 to +40
Storage temperature *⁴ -20 to +50
Weight 400 g
Cable length 1000 mm

*¹ Measured after 3 h storage in the dark.

*² Total 10 digit linearity of photon counting to analog output is within ±20 %.

*³ Pulse output only when 40 mV or more.

*⁴ No condensation.

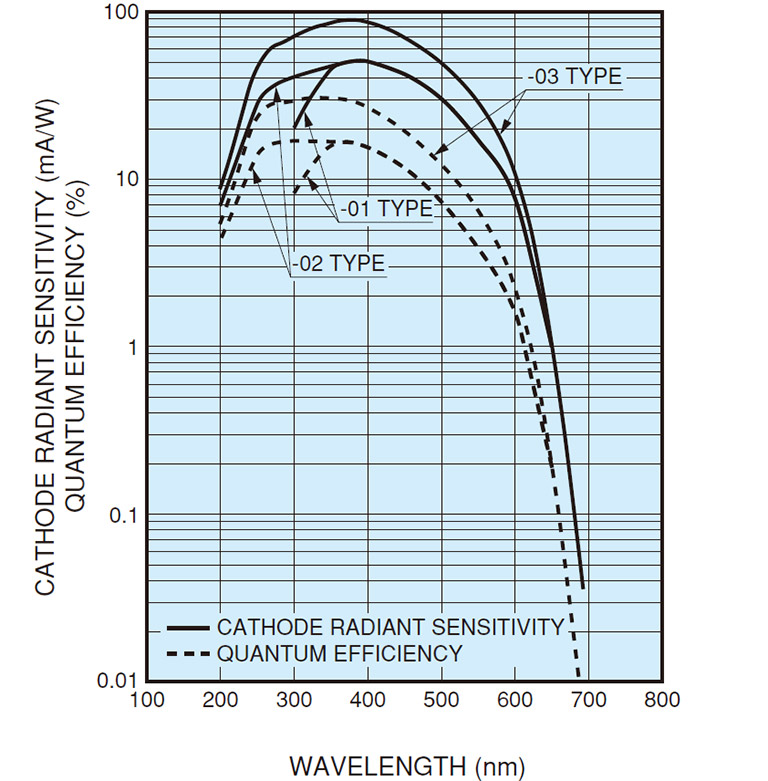

Typical spectral response

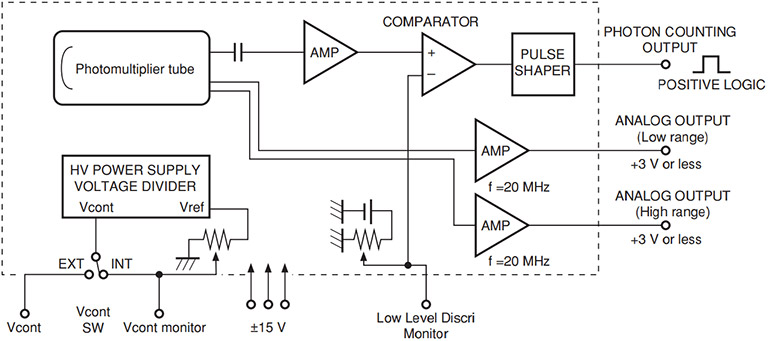

Block diagram

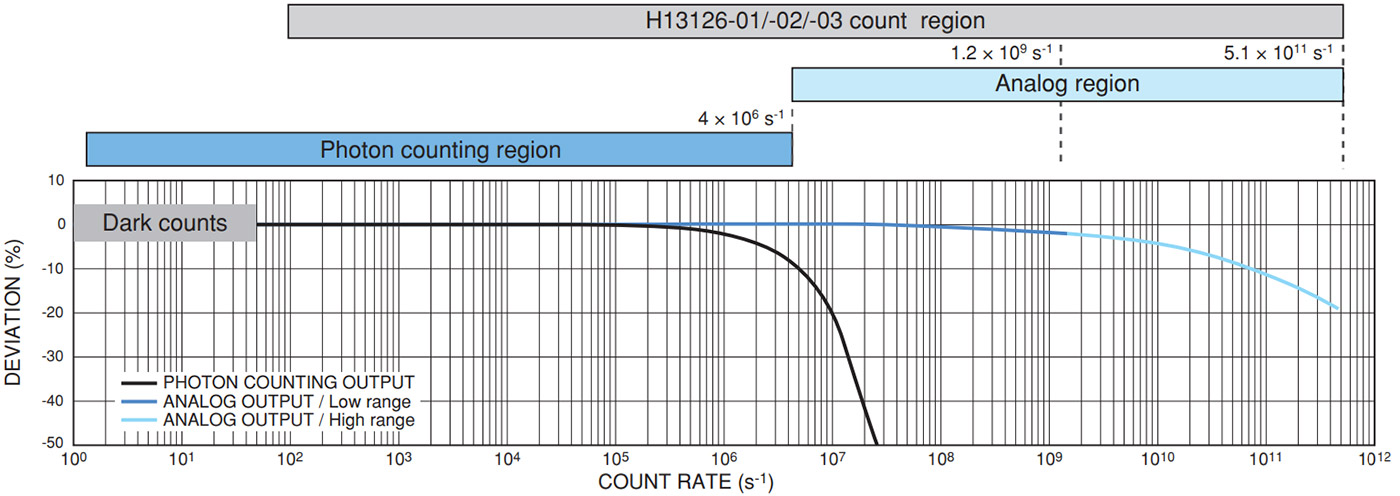

Measurement region

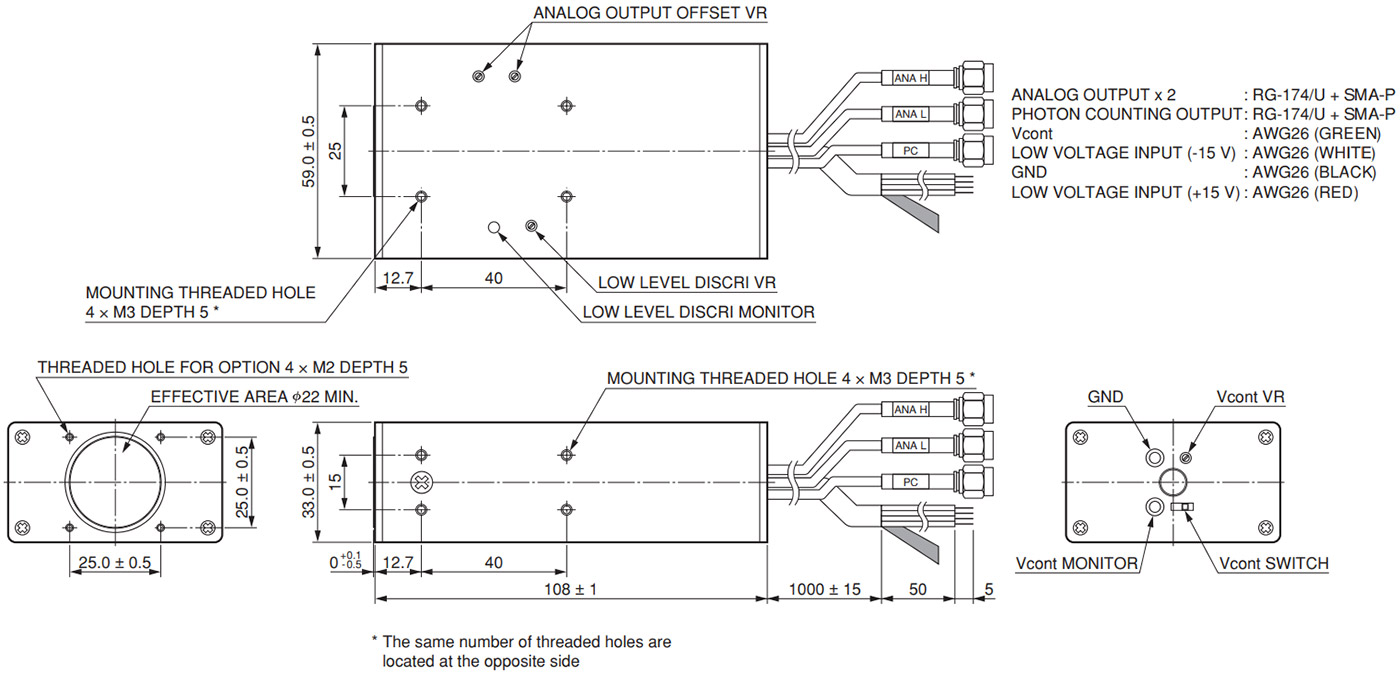

Dimensional outline (Unit mm)
