Multianode photomultiplier tube module
|Photocathode Area Shape||Square|
|Photocathode Area Size||0.8 x 7 x (32) mm|
|Wavelength (Short)||300 nm|
|Wavelength (Long)||650 nm|
|Wavelength (Peak)||400 nm|

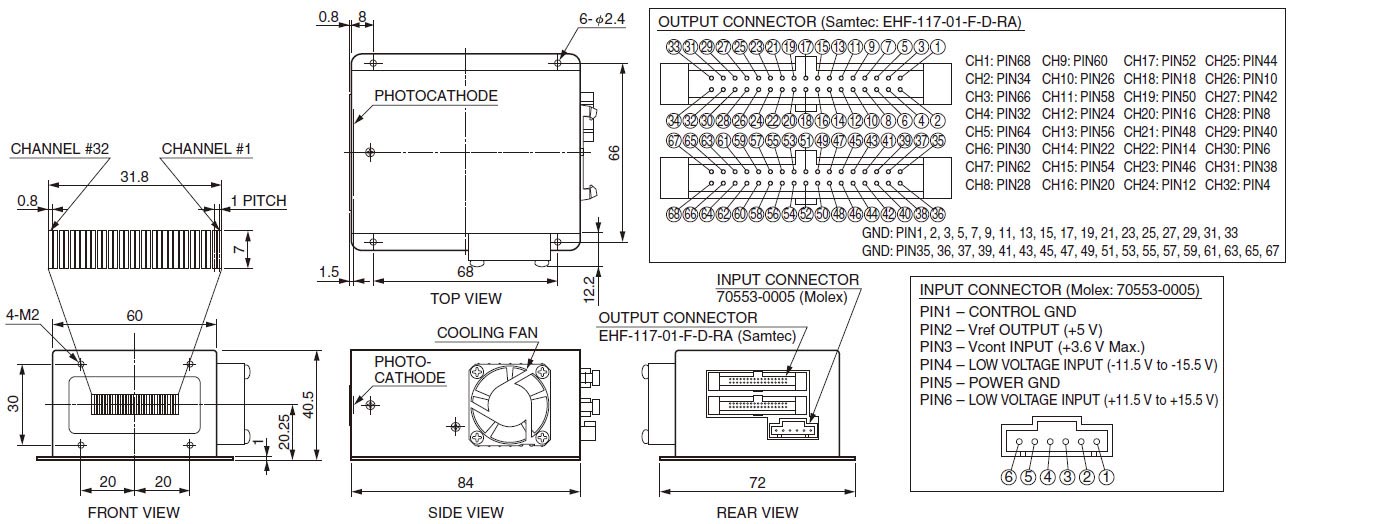

|Dimension (W x H x D)||60 x 40.5 x 84 mm|
|Input Voltage||+/-11.5 to +/-15.5 V|
|Max. Input Voltage||+/-16 V|
|Max. Output Signal Voltage||+0.6/ch(DC) / +10/ch(Pulse) V|
|Max. Control Voltage||3.6 V|
|Recommended Control Voltage Adjustment Range||+2.0 to +3.2 V|
|[Cathode] Luminous Sensitivity Min.||90 μA/lm|
|[Cathode] Luminous Sensitivity Typ.||105 μA/lm|
|[Cathode] Blue Sensitivity Index (CS 5-58) Typ.||13.5|
|[Cathode] Radiant Sensitivity Typ.||110 mA/W|
|[Anode] Luminous Sensitivity Min||9.0 x 106 V/lm|
|[Anode] Luminous Sensitivity Typ.||2.1 x 107 V/lm|
|Current to Voltage Coversion Factor||0.1 V/uA|
|Operating Ambient Temperature||+5 to +45 ℃|
|Storage Temperature||-20 to +50 ℃|
