Multianode photomultiplier tube module

H12310-42

The H12310 series is a GaAsP photocathode 16-channel linear multianode PMT module. Its output can be adjusted by controlling the gain of each channel individually.

Photocathode Area Shape Square
Photocathode Area Size 0.8 x 5 x 16 ch(Channel pitch 1 mm) mm
Wavelength (Short) 300 nm
Wavelength (Long) 840 nm
Wavelength (Peak) 660 nm
Dimension (W x H x D) 73 x 60 x 106.2 mm
Input Voltage High voltage power supply (+12 V input): +10.5 to +13.5
Amplifier power supply (±5 input): ±4.5 to ±5.5 V
Max. Input Voltage High voltage power supply (+12 V input): +15
Amplifier power supply (±5 input): ±6 V
Max. Input Current High voltage power supply (+12 V input): +40
Amplifier power supply (±5 input): +110 / -110 mA
Max. Output Signal Voltage Maximum average output signal / ch : +0.4
Maximum pulse output signal : +3.5 V
Max. Control Voltage 1.2 V
Recommended Control Voltage Adjustment Range +0.5 to +1.1 V
[Cathode] Luminous Sensitivity Min. 900 μA/lm
[Cathode] Luminous Sensitivity Typ. 1100 μA/lm
[Cathode] Radiant Sensitivity Typ. 133 mA/W
[Anode] Luminous Sensitivity Min 4.5 x 107 V/lm
[Anode] Luminous Sensitivity Typ. 1.1 x 108 V/lm
[Anode] Radiant Sensitivity Typ. 13.3 V/nW
[Anode] Vout Depending on PMT Dark Current Typ. 0.1 mV
[Anode] Vout Depending on PMT Dark Current Max. 0.3 mV
Current to Voltage Coversion Factor 0.1 V/uA
Output Offset Voltage Typ. ±2 mV
Ripple Noise (peak to peak) Max. 1 mV
Settling Time Max. 2 s
Operating Ambient Temperature +5 to +50 ℃
Storage Temperature -20 to +50 ℃
Weight 434 g

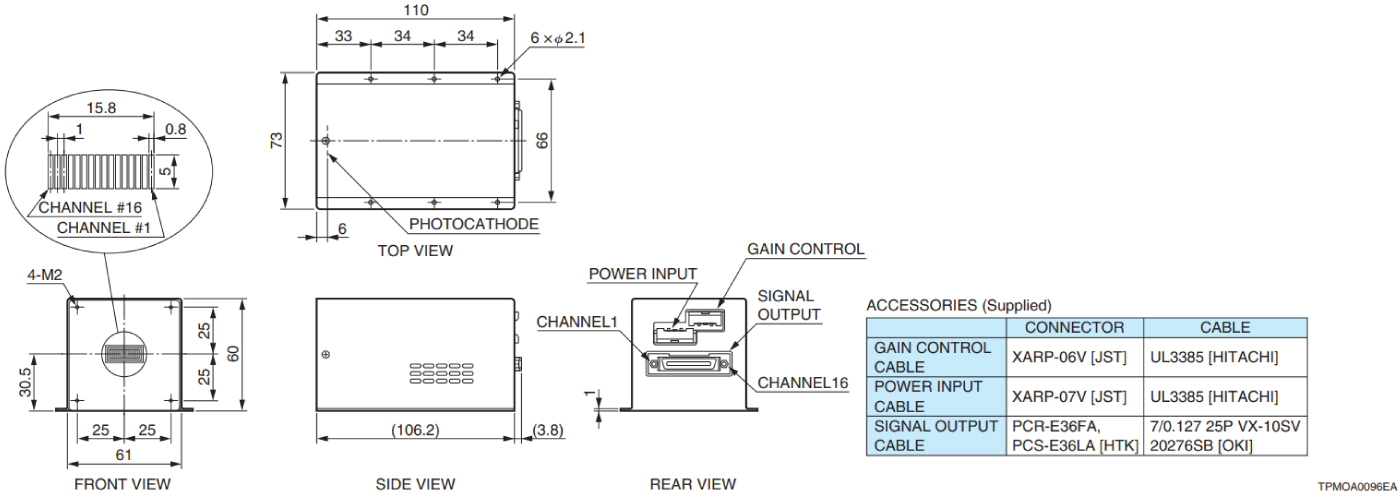

Dimensional outline (Unit: mm)

Dimensional outline
