Photomultiplier tube module
The H9306/H9307 series photomultiplier tube modules incorporate a 13 mm (1/2") diameter side-on photomultiplier tube, a high-voltage power supply circuit and a low noise amplifier. Two types of amplifiers are available with a current-tovoltage conversion factor of 1 V/μA or 0.1 V/μA and a frequency bandwidth of 20 kHz or 200 kHz. The H9306/H9307 series uses a Cockcroft-Walton circuit with low power consumption.Flexible cables are used for easy installation equipment.
|Photocathode Area Shape||Square|
|Photocathode Area Size||3.7 x 13.0 mm|
|Wavelength (Short)||185 nm|
|Wavelength (Long)||830 nm|
|Wavelength (Peak)||530 nm|

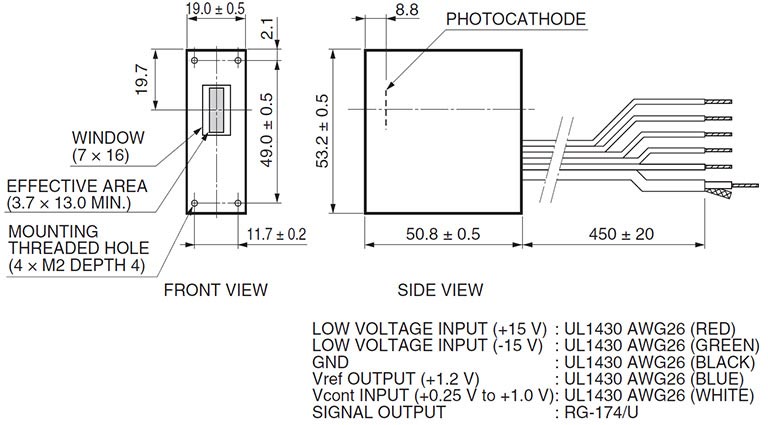

|Dimension (W x H x D)||19.0 x 53.2 x 50.8 mm|
|Input Voltage||+/-11.5 to +/-15.5 V|
|Max. Input Voltage||+/-18 V|
|Max. Input Current||+15 / -8 mA|
|Max. Output Signal Voltage||+1 (Load resistance 10 k-ohm) V|
|Max. Control Voltage||1.2 V|
|Recommended Control Voltage Adjustment Range||+0.25 to +1.0 V|
|[Cathode] Luminous Sensitivity Min.||140 μA/lm|
|[Cathode] Luminous Sensitivity Typ.||200 μA/lm|
|[Cathode] Blue Sensitivity Index (CS 5-58) Typ.||-|
|[Cathode] Red/White Ratio Typ.||0.15|
|[Cathode] Radiant Sensitivity Typ.||70 mA/W|
|[Anode] Luminous Sensitivity Min||3.0 x 107 V/lm|
|[Anode] Luminous Sensitivity Typ.||7.0 x 107 V/lm|
|[Anode] Radiant Sensitivity Typ.||25 V/nW|
|[Anode] Vout Depending on PMT Dark Current Typ.||0.01 mV|
|[Anode] Vout Depending on PMT Dark Current Max.||0.1 mV|
|Current to Voltage Coversion Factor||0.1 V/uA|
|Output Offset Voltage Typ.||+/- 3 mV|
|Ripple Noise (peak to peak) Max.||0.8 mV|
|Settling Time Max.||10 s|
|Operating Ambient Temperature||+5 to +50 ℃|
|Storage Temperature||-20 to +50 ℃|
