Photomultiplier tube

R464

51mm dia., Head-on type, Bialkali photocathode (Effective area : 5 mm x 8 mm /Spectral response : 300 nm to 650 nm)

Type Head-on type
Tube Size Dia.51 mm
Photocathode Area Shape Square
Photocathode Area Size 5 mm x 8 mm
Wavelength (Short) 300 nm
Wavelength (Long) 650 nm
Wavelength (Peak) 420 nm
Spectral Response Curve Code 400K
Photocathode Material Bialkali
Window Material Borosilicate glass
Dynode Structure Box-and-grid
Dynode Stages 12
[Max. Rating] Anode to Cathode Voltage 1500 V
[Max. Rating] Average Anode Current 0.01 mA
Anode to Cathode Supply Voltage 1000 V
[Cathode] Luminous Sensitivity Min. 30 μA/lm
[Cathode] Luminous Sensitivity Typ. 50 μA/lm
[Cathode] Radiant Sensitivity Typ. 50 mA/W
[Anode] Luminous Sensitivity Min. 100 A/lm
[Anode] Luminous Sensitivity Typ. 300 A/lm
[Anode] Radiant Sensitivity Typ. 3.0 x 105 A/W
[Anode] Gain Typ. 6.0 x 106
[Time Response] Rise Time Typ. 13 ns
[Time Response] Transit Time Typ. 70 ns
Notes Anode dark count (Typ.) : 5 (s-1)Anode dark count (Max.) : 15 (s-1)

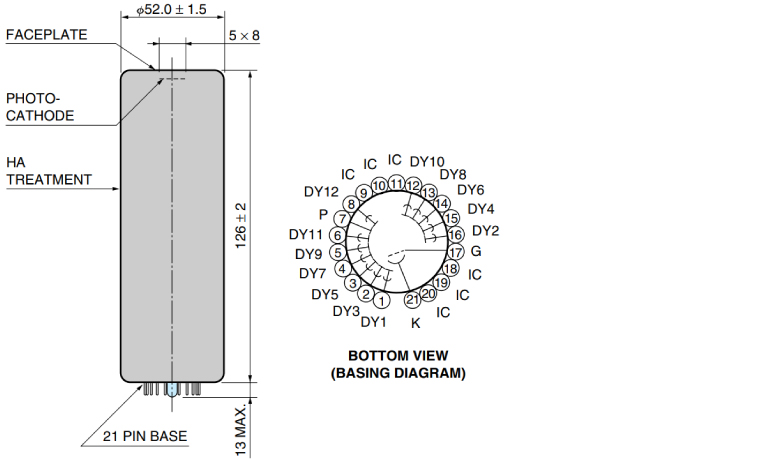

Dimensional outline (Unit: mm)
