Photomultiplier tube

R6594

128mm dia., Head-on type, Bialkali photocathode (Effective area : 110 mm dia./Spectral response : 300 nm to 650 nm), For high energy phisics

Type Head-on type
Tube Size Dia.128 mm
Photocathode Area Shape Round
Photocathode Area Size Dia.110 mm
Wavelength (Short) 300 nm
Wavelength (Long) 650 nm
Wavelength (Peak) 420 nm
Photocathode Material Bialkali
Window Material Borosilicate glass
Dynode Structure Box-and-grid+Linear-focused
Dynode Stages 10
[Max. Rating] Anode to Cathode Voltage 2000 V
[Max. Rating] Average Anode Current 0.1 mA
Anode to Cathode Supply Voltage 1500 V
[Cathode] Luminous Sensitivity Typ. 80 μA/lm
[Cathode] Blue Sensitivity Index (CS 5-58) Typ. 10
[Cathode] Radiant Sensitivity Typ. 80 mA/W
[Anode] Luminous Sensitivity Min. 50 A/lm
[Anode] Luminous Sensitivity Typ. 240 A/lm
[Anode] Radiant Sensitivity Typ. 2.4 x 105 A/W
[Anode] Gain Typ. 3.0 x 106
[Anode] Dark Current (after 30min.) Typ. 30 nA
[Anode] Dark Current (after 30min.) Max. 300 nA
[Time Response] Rise Time Typ. 3.5 ns
[Time Response] Transit Time Typ. 45 ns
[Time Response] Transit Time Spread Typ. 1.5 ns
[Anode] Pulse Linearity (2% deviation) 30 mA
[Anode] Pulse Linearity (5% deviation) 50 mA

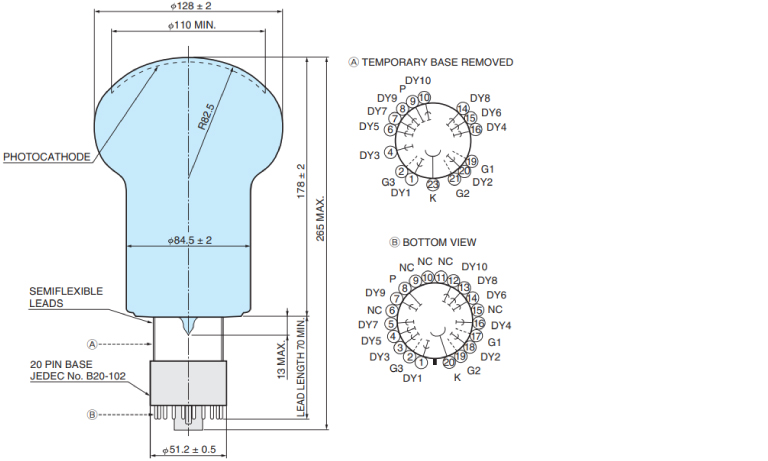

Dimensional outline (Unit: mm)
