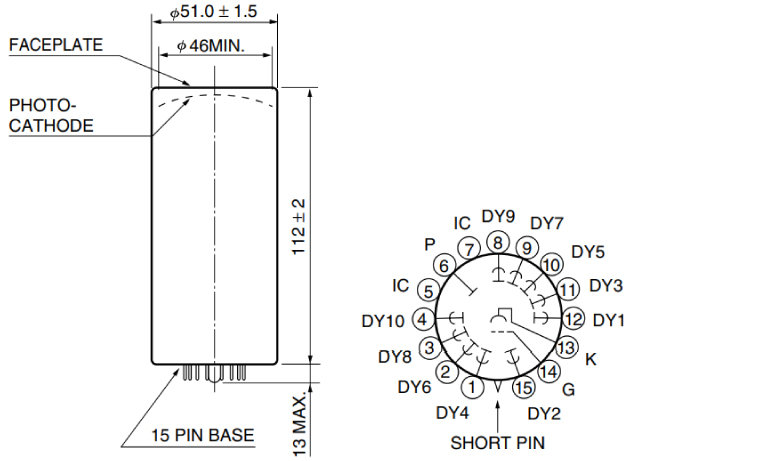

|Tube Size||Dia.51 mm|
|Photocathode Area Shape||Round|
|Photocathode Area Size||Dia.46 mm|
|Wavelength (Short)||300 nm|
|Wavelength (Long)||900 nm|
|Wavelength (Peak)||600 nm|
|Spectral Response Curve Code||501K|
|Photocathode Material||Extended red multialkali|
|Window Material||Borosilicate glass|
|[Max. Rating] Anode to Cathode Voltage||1500 V|
|[Max. Rating] Average Anode Current||0.1 mA|
|Anode to Cathode Supply Voltage||1000 V|
|[Cathode] Luminous Sensitivity Min.||140 μA/lm|
|[Cathode] Luminous Sensitivity Typ.||230 μA/lm|
|[Cathode] Red/White Ratio (R-68) Typ.||0.35|
|[Cathode] Radiant Sensitivity Typ.||50 mA/W|
|[Anode] Luminous Sensitivity Min.||20 A/lm|
|[Anode] Luminous Sensitivity Typ.||75 A/lm|
|[Anode] Radiant Sensitivity Typ.||1.7 x 104 A/W|
|[Anode] Gain Typ.||3.3 x 105|
|[Anode] Dark Current (after 30min.) Typ.||7 nA|
|[Anode] Dark Current (after 30min.) Max.||15 nA|
|[Time Response] Rise Time Typ.||9 ns|
|[Time Response] Transit Time Typ.||70 ns|
