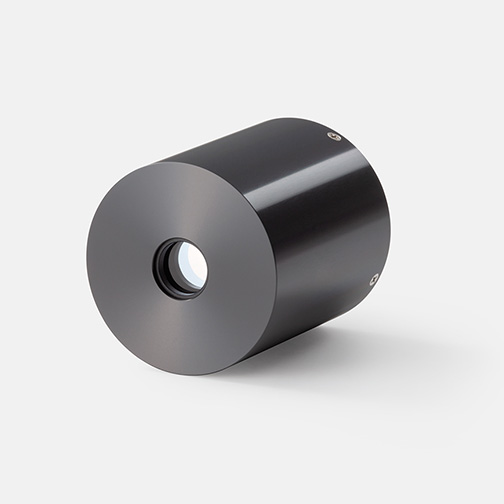

Microchannel plate photomultiplier tube

R3809U-50

45 mm dia., MCP-PMT, Multialkali photocathode (Effective area :11 mm dia./Spectral response : 160 nm to 850 nm)

Type MCP-PMT
Tube Size Dia.45 mm
Photocathode Area Shape Round
Photocathode Area Size Dia.11 mm
Wavelength (Short) 160 nm
Wavelength (Long) 850 nm
Wavelength (Peak) 430 nm
Photocathode Material Multialkali
Window Material Silica glass
Dynode Structure MCP
Dynode Stages 2
[Max. Rating] Anode to Cathode Voltage -3400 V
[Cathode] Luminous Sensitivity Min. 100 μA/lm
[Cathode] Luminous Sensitivity Typ. 180 μA/lm
[Cathode] Radiant Sensitivity Typ. 70 mA/W
[Anode] Luminous Sensitivity Typ. 54 A/lm
[Anode] Gain Typ. 3.0 x 105
[Time Response] Rise Time Typ. 160 ps
[Time Response] Transit Time Spread Typ. 25 ps

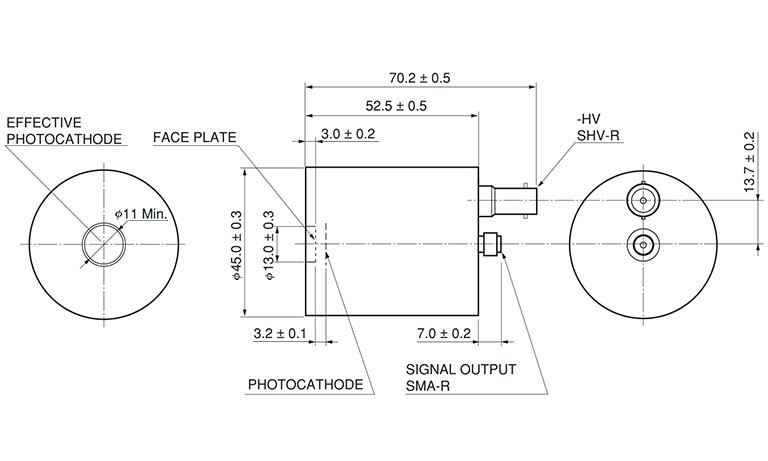

Dimensional outline (Unit: mm)
