Microchannel plate photomultiplier tube

R3809U-64

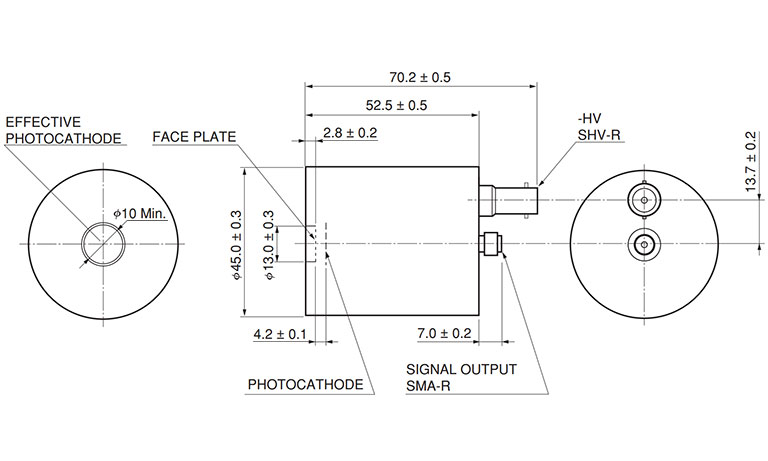

45mm dia. MCP-PMT, GaAsP photocathode (Effective Area:10mm dia., Spectral response:280 to 720 nm)

Specifications

Type MCP-PMT
Tube Size Dia.45 mm
Photocathode Area Shape Round
Photocathode Area Size Dia.10 mm
Wavelength (Short) 280 nm
Wavelength (Long) 720 nm
Wavelength (Peak) 550 to 650 nm
Spectral Response Curve Code 600K
Photocathode Material GaAsP
Window Material Borosilicate glass
Dynode Structure MCP
Dynode Stages 2
[Max. Rating] Anode to Cathode Voltage -3400 V
[Max. Rating] Average Anode Current 0.0001 mA
Anode to Cathode Supply Voltage -3000 V
[Cathode] Luminous Sensitivity Min. 400 μA/lm
[Cathode] Luminous Sensitivity Typ. 700 μA/lm
[Cathode] Radiant Sensitivity Typ. 180 mA/W
[Anode] Luminous Sensitivity Typ. 140 A/lm
[Anode] Gain Typ. 2.0 x 105
[Anode] Dark Current (after 30min.) Max. 8 nA
[Time Response] Rise Time Typ. 0.18 ns
[Time Response] Transit Time Typ. 0.55 ns
[Time Response] Transit Time Spread Typ. 0.06 ns
