Microchannel plate photomultiplier tube

R5916U-50

55 mm dia., MCP-PMT, Multialkali photocathode (Effective area :10 mm dia./Spectral response : 160 nm to 850 nm)

Type MCP-PMT
Tube Size Dia.55 mm
Photocathode Area Shape Round
Photocathode Area Size Dia.10 mm
Wavelength (Short) 160 nm
Wavelength (Long) 850 nm
Wavelength (Peak) 430 nm
Spectral Response Curve Code 500S
Photocathode Material Multialkali
Window Material Quartz
Dynode Structure MCP
Dynode Stages 2
[Max. Rating] Anode to Cathode Voltage -3400 V
[Max. Rating] Average Anode Current 0.0001 mA
Anode to Cathode Supply Voltage -3000 V
[Cathode] Luminous Sensitivity Min. 100 μA/lm
[Cathode] Luminous Sensitivity Typ. 150 μA/lm
[Cathode] Radiant Sensitivity Typ. 52 mA/W
[Anode] Luminous Sensitivity Typ. 45 A/lm
[Anode] Gain Typ. 3.0 x 105
[Anode] Dark Current (after 30min.) Max. 10 nA
[Time Response] Rise Time Typ. 0.18 ns
[Time Response] Transit Time Typ. 1 ns
[Time Response] Transit Time Spread Typ. 0.1 ns

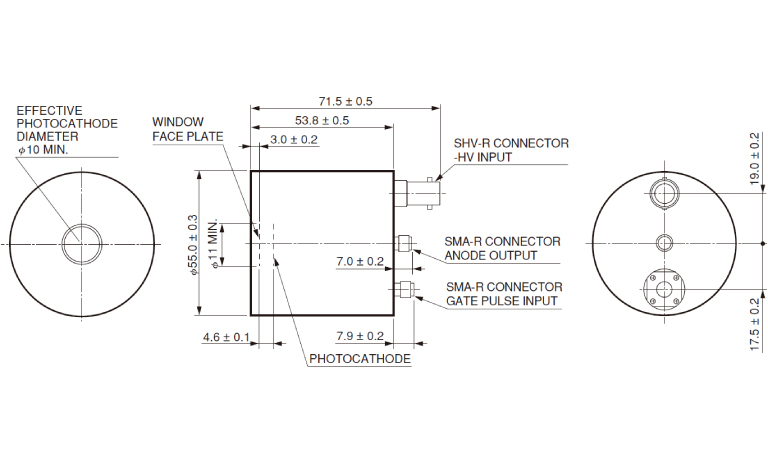

Dimensional outline (Unit: mm)
