Photomultiplier tube

R14755U-100

16mm dia., TO-8 metal package type, super bialkali photocathode (Effective area : 8.0 mm dia./Spectral response : 300 nm to 650 nm)

Type Metal package type
Features Fast response time
Tube Size Dia.16 mm
Photocathode Area Shape Round
Photocathode Area Size Dia.8.0 mm
Wavelength (Short) 300 nm
Wavelength (Long) 650 nm
Wavelength (Peak) 400 nm
Spectral Response Curve Code -
Photocathode Material Super bialkali (SBA)
Window Material Borosilicate glass
Dynode Structure Metal channel
Dynode Stages 6
[Max. Rating] Anode to Cathode Voltage 1000 V
[Max. Rating] Average Anode Current 0.1 mA
Anode to Cathode Supply Voltage 800 V
[Cathode] Luminous Sensitivity Min. 80 μA/lm
[Cathode] Luminous Sensitivity Typ. 105 μA/lm
[Cathode] Blue Sensitivity Index (CS 5-58) Typ. 13.5
[Cathode] Radiant Sensitivity Typ. 110 mA/W
[Anode] Luminous Sensitivity Min. 0.4 A/lm
[Anode] Luminous Sensitivity Typ. 2.6 A/lm
[Anode] Radiant Sensitivity Typ. 2.75 x 103 A/W
[Anode] Gain Typ. 2.5 x 104
[Anode] Dark Current (after 30min.) Typ. 0.1 nA
[Anode] Dark Current (after 30min.) Max. 1 nA
[Time Response] Rise Time Typ. 0.4 ns
[Time Response] Transit Time Typ. 1.8 ns
[Time Response] Transit Time Spread Typ. 0.2 ns

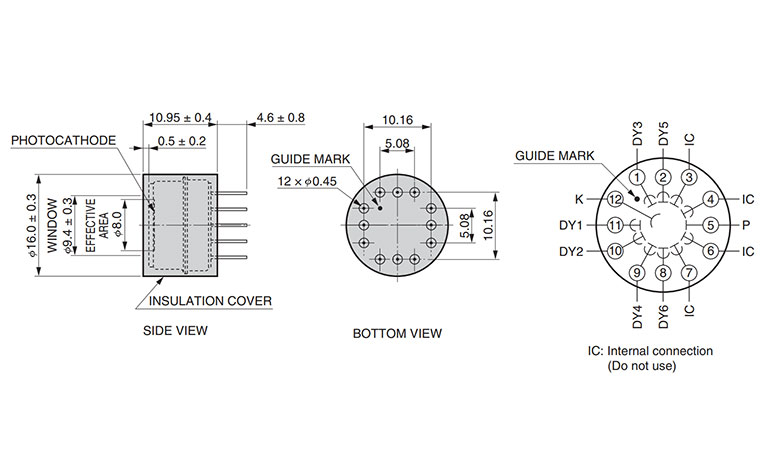

Dimensional outline (Unit: mm)
