UV power meter

C9536/H9958 SERIES

The C9536/H9958 series are optical power meters designed to measure absolute optical power of UV light (mW/cm2). These optical power meters have a flat spectral response over a wide UV wavelength region, and are capable of measuring the optical power independent of the spectral emission distribution of a light source to be measured. Unlike commonly available UV power meters, optical power of various UV light sources can be easily measured with just one unit of this power meter, without having correct each wavelength of emitted light. A combination of the C9536-02 and H9958-02 is suitable for measuring the optical power of high output UV-LED. Also, we recommend a combination of the C9536-01 and H9958 as a power meter to measure the optical power of light sources for photocatalysis.

Features

  • Traceable to National Standard in Japan and a Certificate of Calibration is Appended
  • Flat Spectral Response Characteristics Over a Wide UV Region
  • High Sensitivity (detectable down to 1 µW/cm2) (H9958, H9958-01)
  • Compatible with high output UV-LED (H9958-02)
  • Ideal for Monitoring / Controlling Light Source Power for Photocatalyst (H9958)

Applications

Monitoring, Measurement and Control of:

  • Black Light
  • UV LED
  • Ultraviolet Rays (UV-A)
  • Mercury-Xenon Lamp
  • High Pressure Mercury-Xenon Lamp
  • Deuterium Lamp

Specifications

CONTROLLER : C9536-01/C9536-02

Parameter Description / Value
Measurement Mode Continuous This mode makes continuous measurements at a sampling rate of 1 second.
Integration This mode displays a result integrated over a certain period of time
(adjustable from 1 second to 5 minutes in 1 second steps).
One Shot (C9536-01 only) This mode makes one measurement each time START switch is pressed.
Peak Hold (C9536-02 only) This mode holds the peak values in continuous measurement.
External Interface RS-232C
Power Requirement Internal battery or AC adapter
Dimensions (W × H × D) 75 mm × 110 mm × 20 mm
Operating Ambient Temperature / Humidity 0 °C to +40 °C / Below 80 %
Storage Temperature / Humidity -20 °C to +50 °C / Below 80 %
Weight Approx. 285 g

Supplied: RS-232C cable (2 m), Analog output cable (2 m), AC adapter, AC cable

SENSOR HEAD: H9958 SERIES

Parameter Description / Value
Controller and Sensor Head Combination C9536-01 C9536-02
Type H9958 H9958-01 H9958-02
Spectral Response 310 nm to 380 nm 300 nm to 410 nm
Effective Area φ10 mm φ1 mm
Measurement Range 1 μW/cm2 to 100 mW/cm2 100 μW/cm2 to 10 W/cm2
Dimensions (W × H × D) 55 mm × 75mm × 18 mm
Operating Ambient Temperature / Humidity 0 °C to +45 °C / Below 80 % 0 °C to +60 °C / Below 80 %
Storage Temperature / Humidity -20 °C to +50 °C / Below 80 % -20 °C to +60 °C / Below 80 %
Weight Approx. 195 g

Sensor characteristics

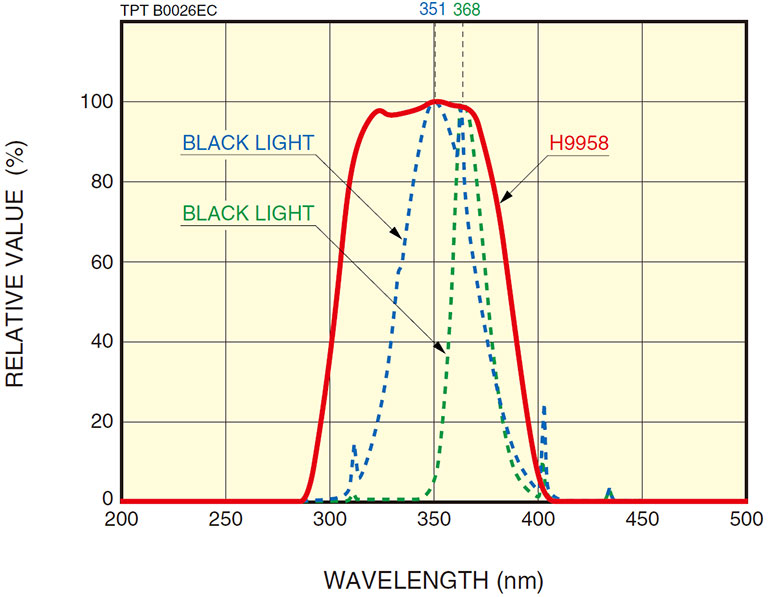

Relative Spectral Response Characteristics of Detector*1(Typ.)
(H9958: 310 nm to 380 nm)



*1: Slight response may occur at some wavelength over 500 nm.

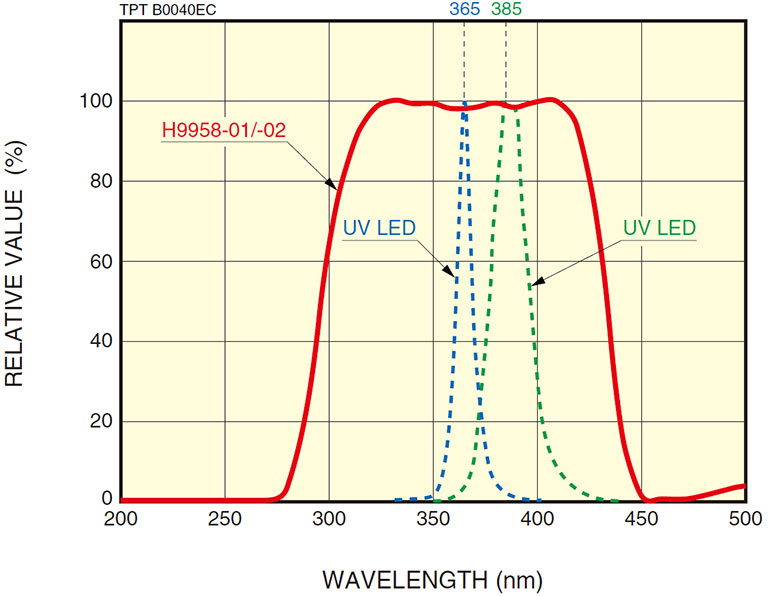

Relative Spectral Response Characteristics of Detector *2(Typ.)
(H9958-01/-02: 300 nm to 410 nm)



*2: Slight response may occur at some wavelength over 500 nm.

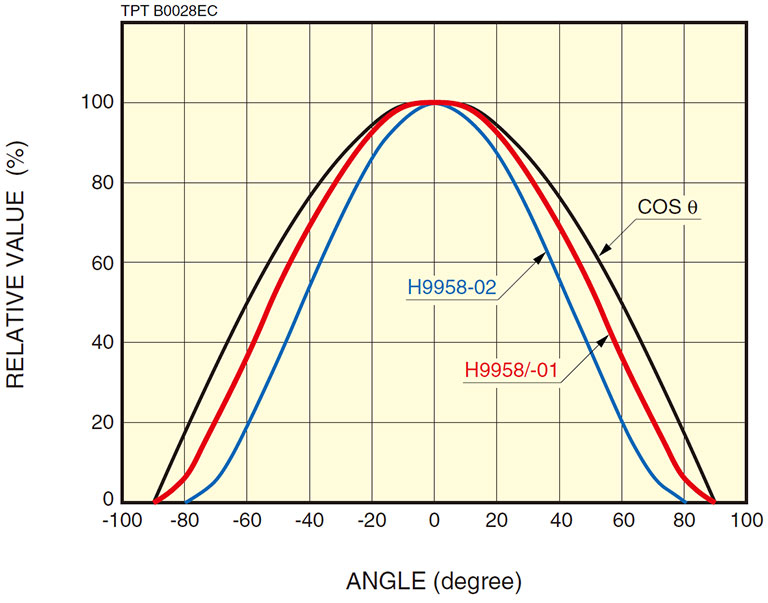

Detector Sensitivity vs. Incident Light Angle (Typ.)

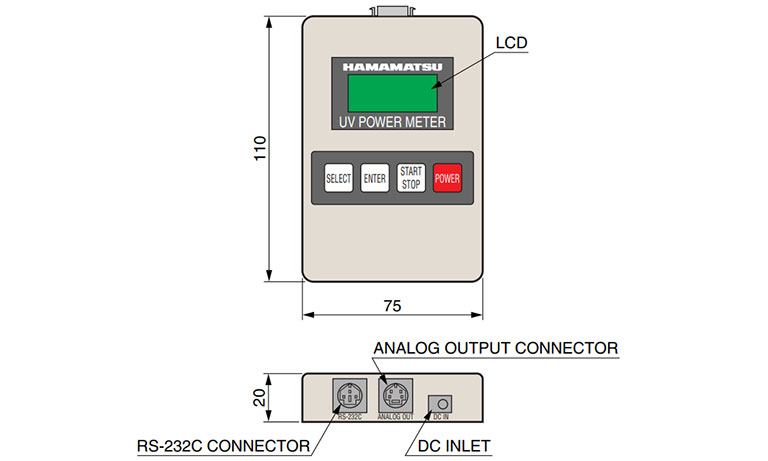

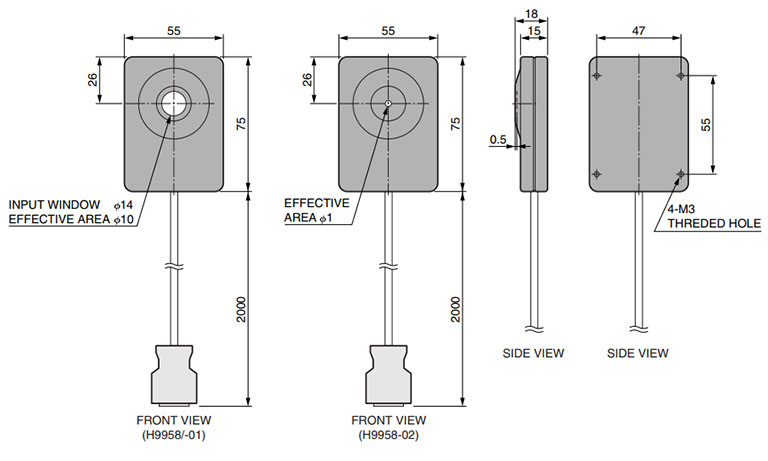

Dimensional outlines (Unit mm)
