InGaAs camera

C16741-40U

The C16741-40U is an InGaAs camera with sensitivity in the visible to near infrared region from 400 nm to 1700 nm.

It has a USB 3.1 Gen 1 interface port which supports 12 bit image acquisition and exposure time adjustment. This makes the C16741-40U ideal for use in a wide range of applications including internal inspection of Si wafers, chips, and MEMS, laser beam alignment and evaluation of solar cells.

Features

  • High sensitivity in the visible to near infrared region
  • 1280 pixels × 1024 pixels
  • Low noise and high stability with cooling
  • Frame rate of 71.53 frames/s

Applications

  • Inspection of internal defects in Si wafers, chips, and MEMS
  • Evaluation and analysis of optical communication devices such as IR beam profilers
  • Evaluation of semiconductor materials such as solar cells
  • Inspection of food and agricultural products
  • Moisture detection
  • Observation of cultural assets

Software

Our software provides the interface to access all of our carefully engineered camera features, from simply setting exposure to orchestrating complex triggering for multidimensional experiments.

Specifications

Type number C16741-40U
Imaging device InGaAs sensor
Effective no. of pixels 1280 (H) × 1024 (V)
Cell size 5 μm (H) × 5 μm (V)
Effective area 6.40 mm (H) × 5.12 mm (V)
Readout speed 71.53 frames/s
Exposure time 20.46 μs to 1 s (13.09 μs step)
Cooling method Forced-air cooled / Natural-air cooled (Peltier cooling)
Cooling temperature +15 ˚C ±0.5 ˚C (Forced-air cooled , Ambient temperature: +25 ˚C ±3 ˚C) , +20 ˚C ±0.5 ˚C (Natural-air cooled , Ambient temperature: +25 ˚C ±3 ˚C)
External trigger mode Edge trigger, level trigger, start trigger
External trigger signal routing SMA
Trigger delay function 0 μs to 10 s (1 μs step)
Image processing functions Background subtraction, Shading correction
Interface USB3.1 Gen 1
Connector USB Type-C
A/D converter 12 bit / 8 bit
Lens mount C-mount
Power supply DC +12 V
Power consumption Approx. 15 W
Ambient operating temperature 0 ˚C to +35 ˚C
Ambient storage temperature -10 ℃ to +50 ℃
Ambient operating humidity 30 % to 80 % (with no condensation)
Ambient storage humidity 90 % max. (with no condensation)

Spectral response

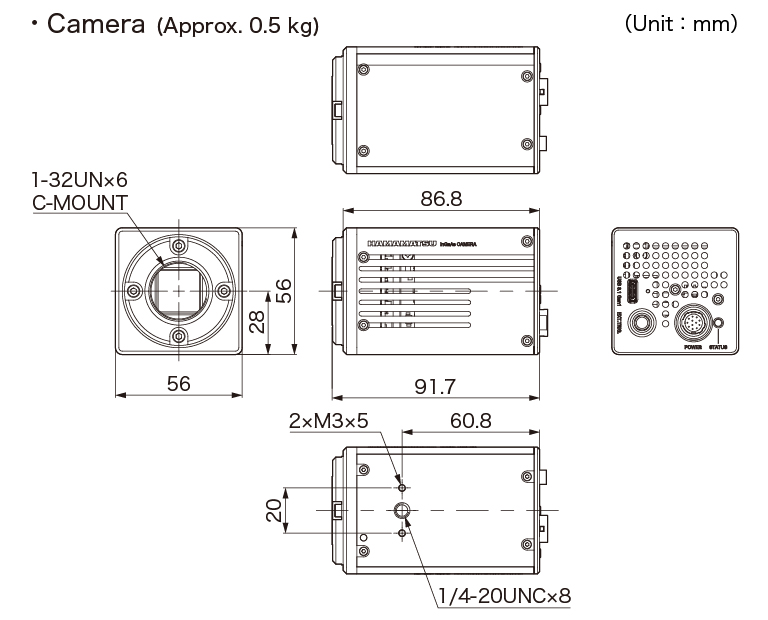

Dimensions
