X-ray sCMOS camera

C12849-111U

The C12849-111U is a high resolution and high sensitivity X-ray sCMOS camera. (Scintillators:GOS(P43) 10 μm) The camera is suitable for micro object by achieving 33 lp/mm high resolution image. Also the product is compact that is suitable as embedded devices for Micro CT/Nano CT system.

Features

  • Resolution: 33 lp/mm
  • Effective number of pixels: 2048 (H)×2048 (V)
  • Frame rate: 30 frames/s
  • Compact size
  • Interface: USB 3.0

Applications

  • X-ray Micro CT
  • High resolution X-ray imaging
  • X-ray diffraction
  • XAFS

Application example

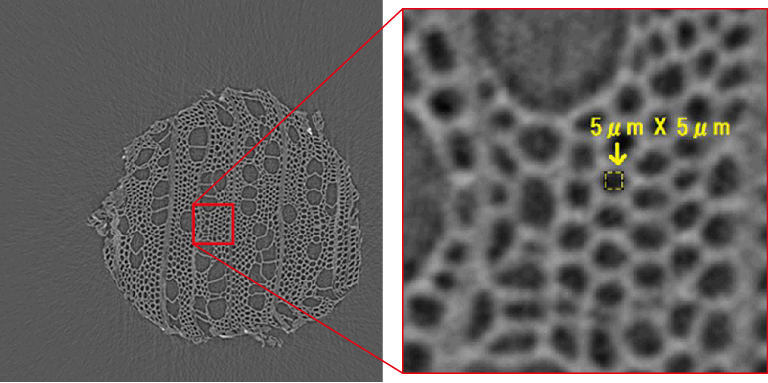

CT image of toothpick

X-ray source L9181-02
X-ray tube voltage 40 kV
X-ray tube current 100 μA
FOD 34.435 mm
FDD 306.42 mm
X-ray magnification 8.9 ×
Acquisition number 1000 Projections / 360 degree
Exposure time for each projection 8 s

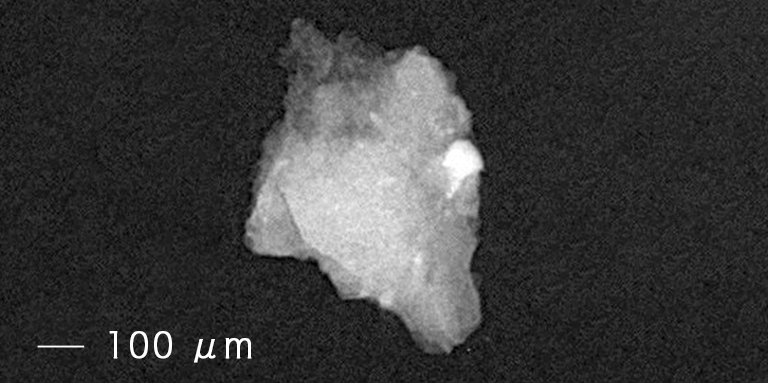

X-ray transmission image of Kilabo meteor

X-ray source L10711-03
X-ray tube voltage 80 kV
X-ray tube current 120 μA
FOD 50 mm
FDD 465 mm
X-ray magnification 9.3 ×
Exposure time 10 s



*Image courtesy of Dr.Uesugi , JAXA

Software

Our software provides the interface to access all of our carefully engineered camera features, from simply setting exposure to orchestrating complex triggering for multidimensional experiments.

Specifications

Type number C12849-111U
Imaging device Scientific CMOS sensor
Effective no. of pixels 2048 (H)×2048 (V)
Cell size 6.5 μm (H)×6.5 μm (V)
Effective area 13.312 mm (H)×13.312 mm (V)
Scintillator GOS(P43) 10 μm
FOP ratio 1:1*1
Full well capacity 30 000 electrons (typ.)
Readout speed 30 frames/s to 25 655 frames/s
Readout noise 1.6 electrons (median), 2.3 electrons (rms)
Exposure time 1 ms to 30 s (1 ms to 100 ms recommended) *2
Dynamic range 18 000:1 typ.*3
Sub-array Yes
Binning 2×2, 4×4*4
External trigger mode Edge trigger, Level trigger, Synchronous readout trigger, Start trigger
Trigger output Programmable timing outputs, Global exposure timing output, Trigger ready output, Low output, High output
Interface USB 3.0
Recommended X-ray tube voltage range 25 kV to 90 kV
A/D converter 16 bit
Power supply AC 100 V to 240 V, 50 Hz/60 Hz
Power consumption Approx. 35 VA
Ambient operating temperature 0 ℃ to +40 ℃ *5
Ambient storage temperature -10 ℃ to +50 ℃
Ambient operating humidity 30 % to 70 % Forced-air cooled (with no condensation)
Ambient storage humidity 90 % max. (with no condensation)

*1  Shear distortion of up to 30 μm may occur.
*2  When exposure time is longer than 100 ms, white spots may occur and image quality may degraded.
*3  Calculated from the ratio of the full well capacity and the readout noise (median).
*4  Digital processing in the camera.
*5  When ambient operating temperature is higher than +35 ˚C, white spots may occur and image quality may degraded.

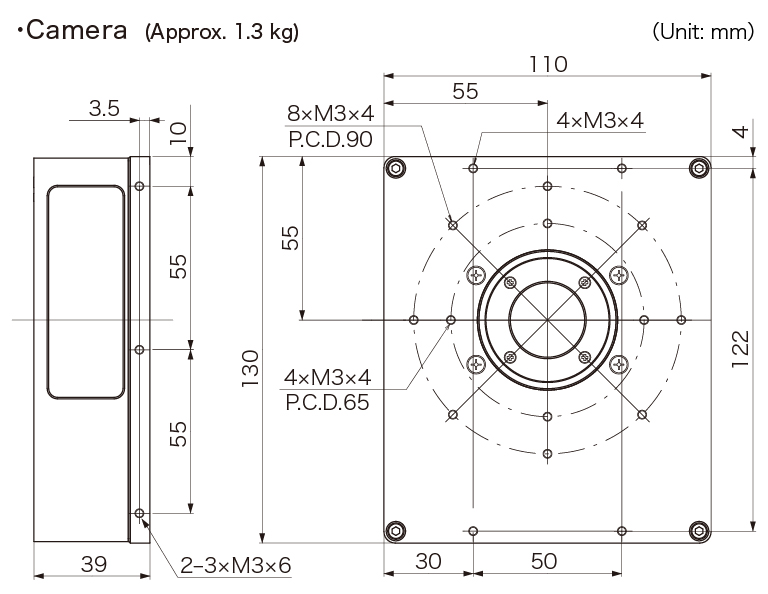

Dimensions

Contact us for more information.
