Measurement examples | X-ray line scan cameras

Supporting in-line nondestructive inspection of various types from thin samples to thick samples by single unit.

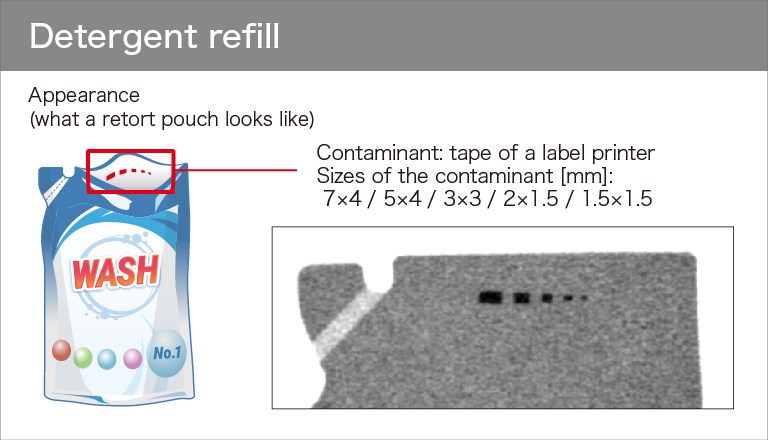

Imaging conditions
Tube voltage: 15 kV, Tube current: 2.0 mA

It can detect penetration of the thin contaminants entered during the packing process.

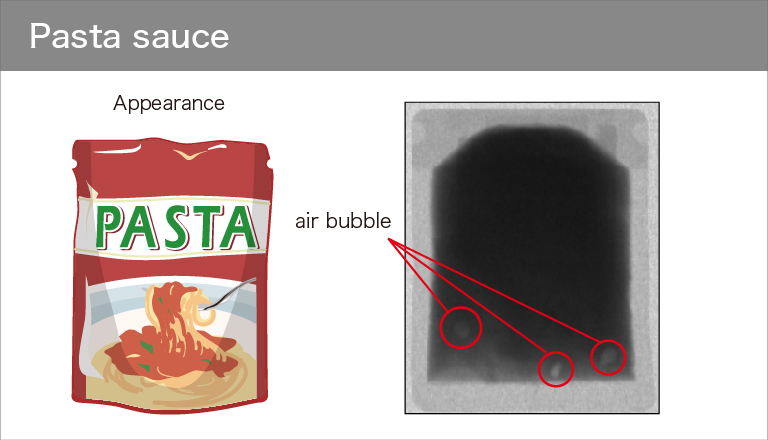

Imaging conditions
Tube voltage: 30 kV, Tube current: 0.5 mA

It can detect contaminants and air bubbles inside retort food products.



Imaging conditions
Tube voltage: 20 kV, Tube current: 6.0 mA

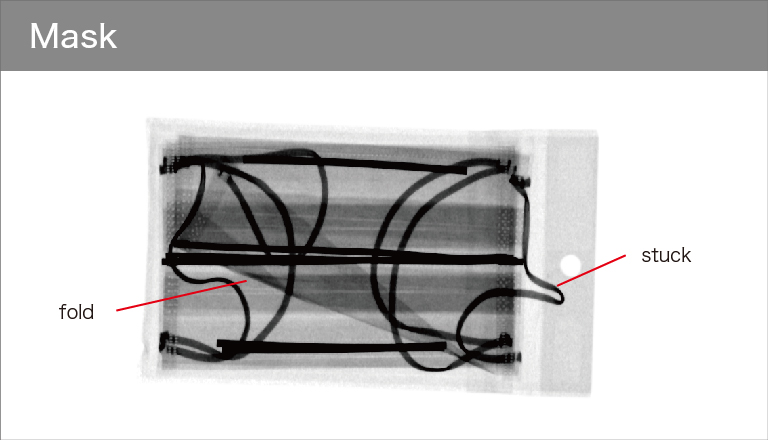

It is possible to detect stuck and folded masks in the package.

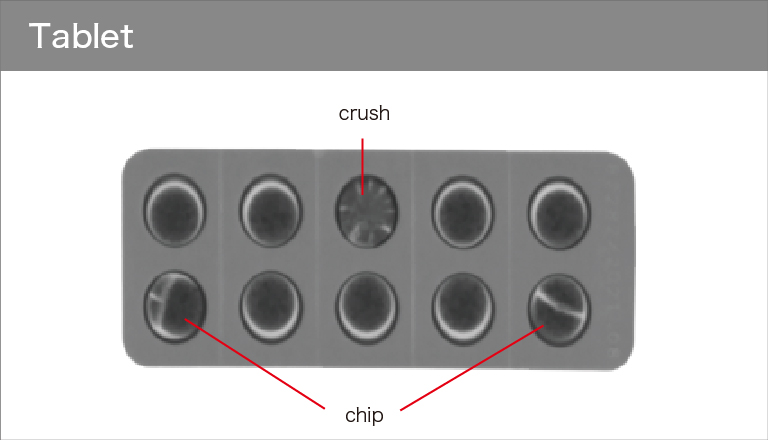

Imaging conditions
Tube voltage: 20 kV, Tube current: 6.0 mA

It can detect cracks, chips, and crushed tablets in the blister pack.

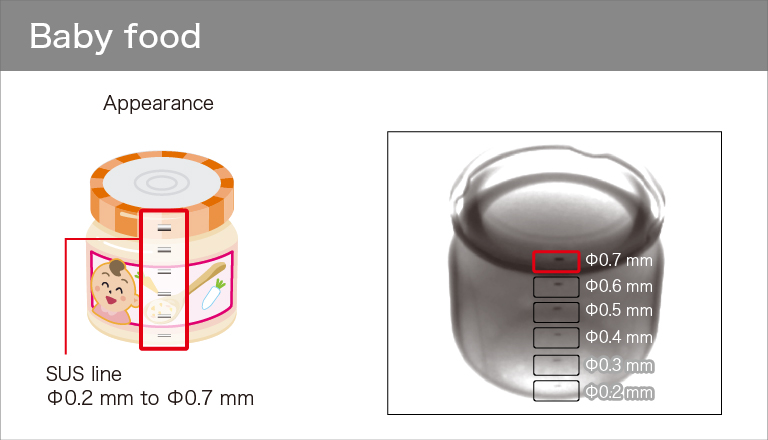

Imaging conditions
Tube voltage: 110 kV, Tube current: 8.0 mA

Under detection of metallic objects in baby food, it can detect them which metal lid overlapped.

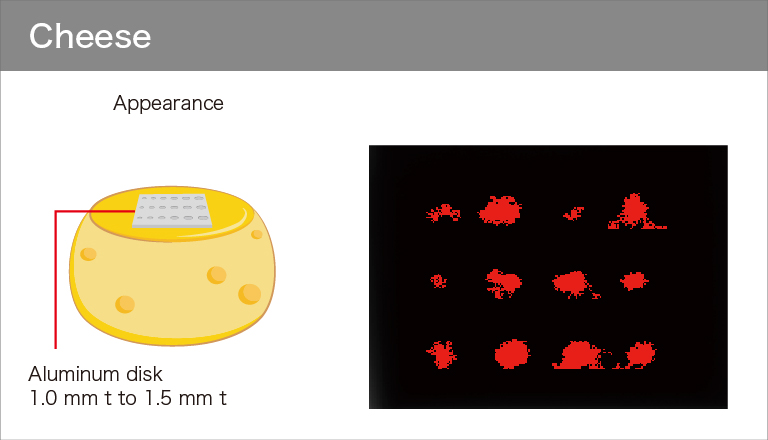

Imaging conditions
Tube voltage: 110 kV, Tube current: 6.0 mA

It can detect the contaminants mixed in high density and thick samples such as cheese.

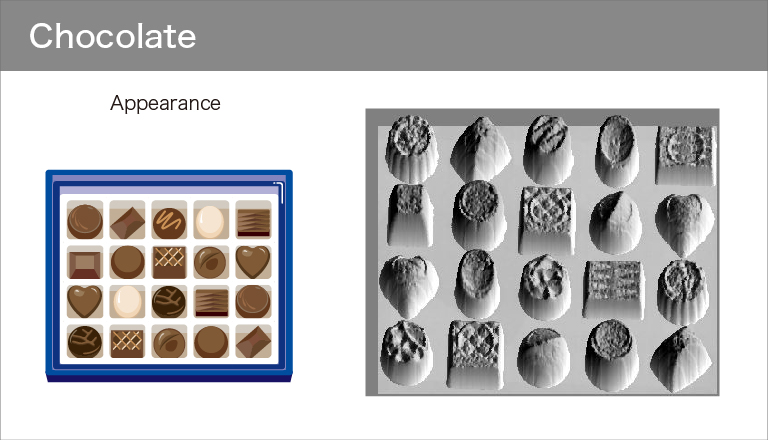

Imaging conditions
Tube voltage: 110 kV, Tube current: 6.0 mA

In addition to shape on complex shaped objects such as assorted chocolates, it can measure individual weights from the shade of the image.

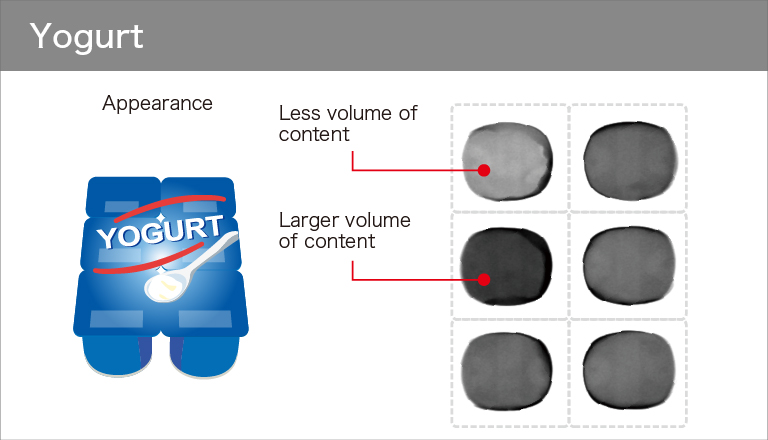

Imaging conditions
Tube voltage: 60 kV, Tube current: 6.0 mA

It can measure the content of yogurt from the contrasting density of the image.

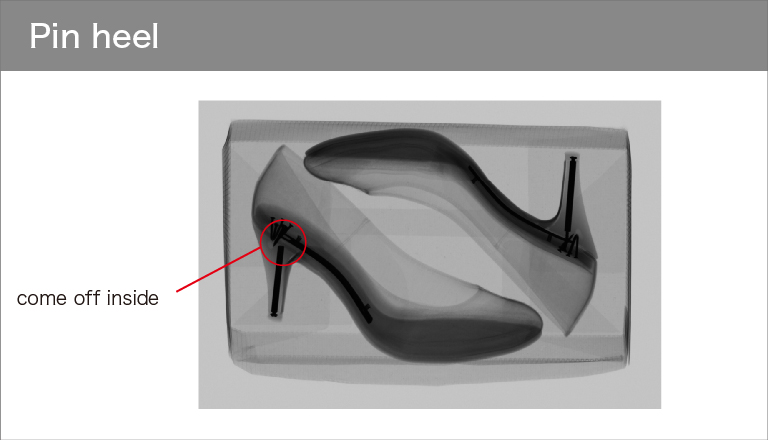

Imaging conditions
Tube voltage: 60 kV, Tube current: 4.0 mA

It is possible to inspect bolts/nails that have come off inside the pin heel.
