FLAT EXCIMER

EX-86U

The “all-in-one” design with an internal power supply achieved a compact, lightweight body that can easily be set up in production sites by eliminating installation hassles with no need to choose installation space. High versatility for in-line usage makes it simple to incorporate the EX-86U into already existing lines and relocate production lines, etc.

Features

  • Compact and lightweight
  • All-in-one design with built-in power supply
  • Operates on AC100 V to AC240 V

Type No. guide

Type No. guide

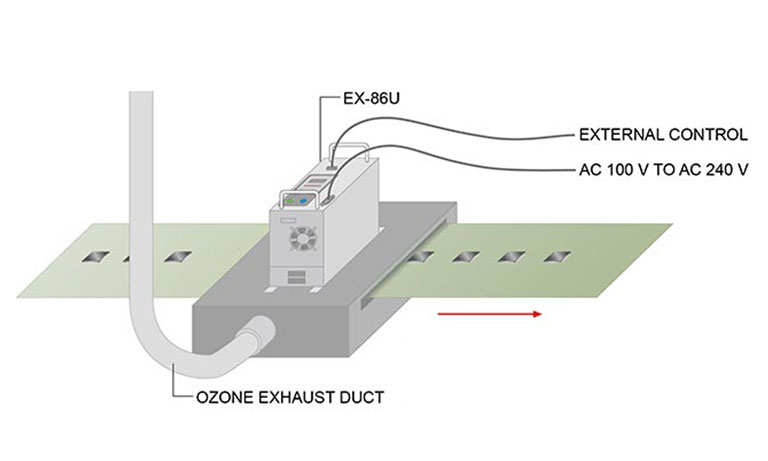

Installation example

Installation example

Specifications

Parameter Description / Value Unit
Emission wavelength 172 nm
Irradiance *1 Typ. 65 mW/cm2
Irradiation area size (W×H) 86 x 40 mm
Lamp design life *2 2000 h
Input voltage (AC) 100 to 240 V
Power consumption 150 or less VA
Cooling method Forced air cooling by fan -
Operating / storage temperature range +5 to +35 / -25 to +55
Operating / storage humidity range 10 to 80 / below 80 (no condensation) %
Control method Panel control / external control -
Weight 4.8 kg
Applicable standards EMC standard IEC61326-1: 2013 Group 2 Class A -
Safety standards IEC61010-1: 2010
IEC62471: 2008 Risk Group 2
-
Environmental standards RoHS directive
WEEE directive
-

*1: 1Value calculated on the assumption that the irradiance is measured with a Hamamatsu UV power meter C9536/H9535-172 placed in the immediate vicinity of the lamp.
*2: When replacing the lamp, please specify the lamp type No. L12681.

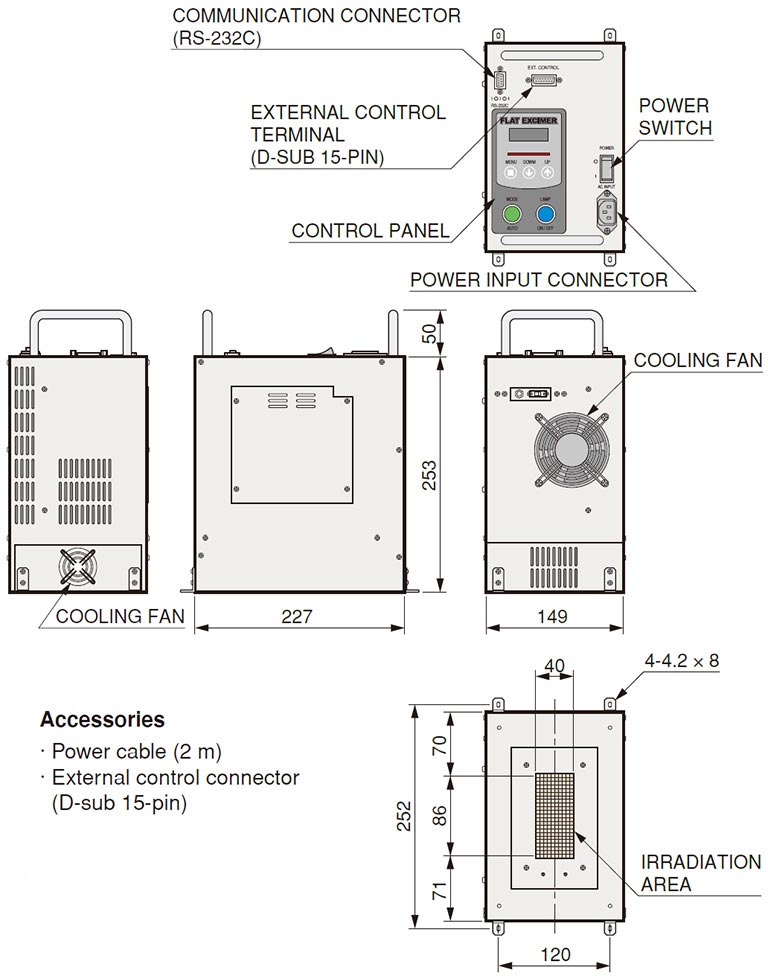

Dimensional outlines (Unit mm)
