Tube lens block

A10859, -01

These are video lens blocks for use with the infinity-corrected objective lenses. It has a tube lens with a focal length of 100 mm to form an image. One side has a male C-mount thread, and the other side has a female C-mount thread. You can attach a device such as a camera to the side with the male thread.
You can use a C-mount double male thread ring to connect the side with the female thread to the dark box.
The tube lens block reduces aberration through the use of an achromatic lens.

Specifications

Type No. Focal length Effective beam size Recommended sensor size Weight
A10859 100 mm φ15 mm 1/3 inches or less Approx. 130 g
A10859-01 φ24 mm 1/2 inches or less Approx. 205 g

* Supplied: C-mount double male thread ring and hex wrench S1.5
* Designed for wavelength from 400 nm to 700 nm.

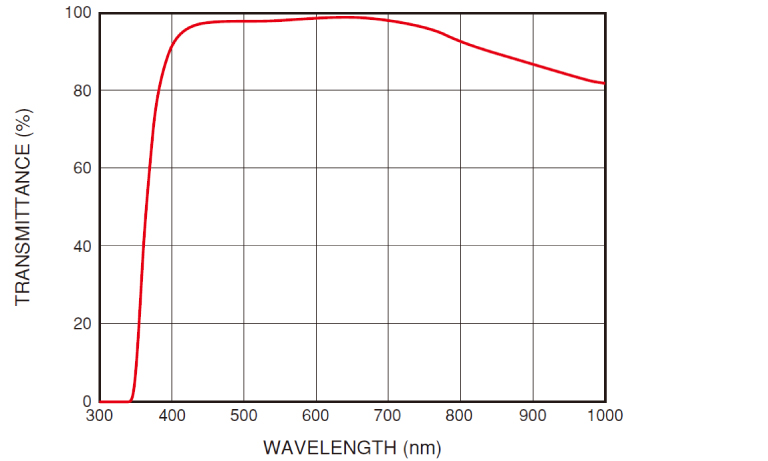

Transmittance (Typical)

Dimensional outlines

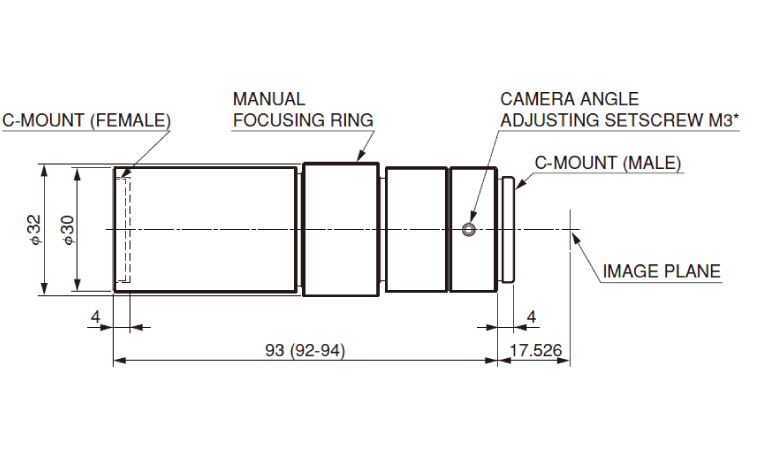

A10859

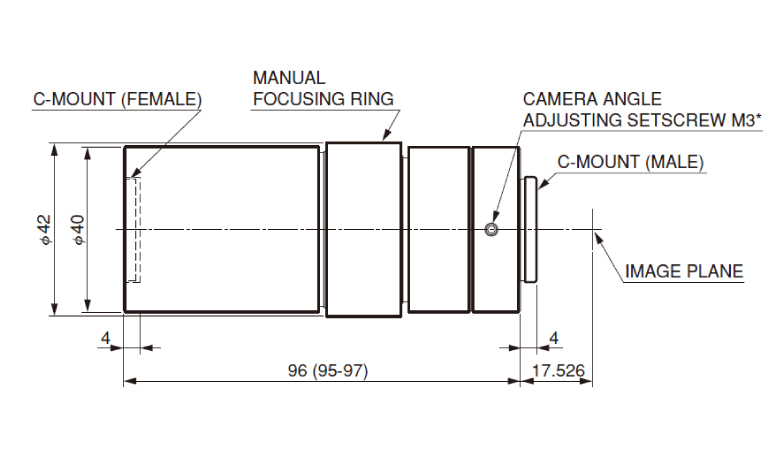

A10859-01
