InGaAs APD

G8931-10

High-speed response

The G8931-10 is a InGaAs APD used for distance measurement, optical communication, and low-light-level detection.


Features
- High-speed response
- Low dark current
- Low capacitance
- High sensitivity
- Large photosensitive area: φ0.1 mm

Number of elements 1
Photosensitive area φ0.1 mm
Package Metal
Package Category TO-18
Spectral response range 950 to 1700 nm
Peak sensitivity wavelength (typ.) 1550 nm
Photosensitivity (typ.) 0.9 A/W
Dark current (max.) 140 nA
Cutoff frequency (typ.) 1500 MHz
Terminal capacitance (typ.) 0.7 pF
Breakdown voltage (typ.) 55 V
Temperature coefficient of breakdown voltage (typ.) 0.11 V/℃
Measurement condition Ta=25℃, Photosensitivity: λ=1.55 μm, M=1

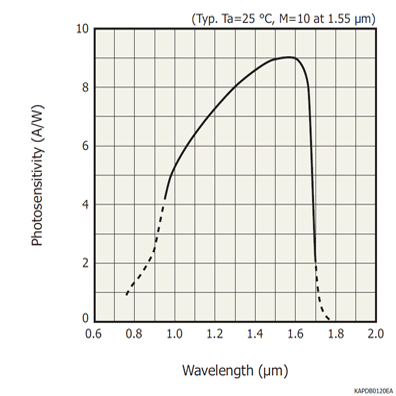

Spectral response

Dimensional outline (unit: mm)
