InGaAs APD

G8931-20

Large photosensitive area: φ0.2 mm, high-speed response: 0.9 GHz

G8931-20 is a large area InGaAs APD designed for distance measurement, spatial light transmission and low-light-level detection, etc. Despite its large active area of φ0.2 mm, G8931-20 provides high-speed response (typical cut-off frequency 0.9 GHz at M=10).


Features
- Photosensitive area: φ0.2 mm
- Low voltage operation
- Low capacitance
- High sensitivity
- Low dark current

Number of elements 1
Photosensitive area φ0.2 mm
Package Metal
Package Category TO-18
Spectral response range 950 to 1700 nm
Peak sensitivity wavelength (typ.) 1550 nm
Photosensitivity (typ.) 0.9 A/W
Dark current (max.) 200 nA
Cutoff frequency (typ.) 900 MHz
Terminal capacitance (typ.) 1.5 pF
Breakdown voltage (typ.) 55 V
Temperature coefficient of breakdown voltage (typ.) 0.11 V/℃
Measurement condition Ta=25℃, Photosensitivity: λ=1.55 μm, M=1

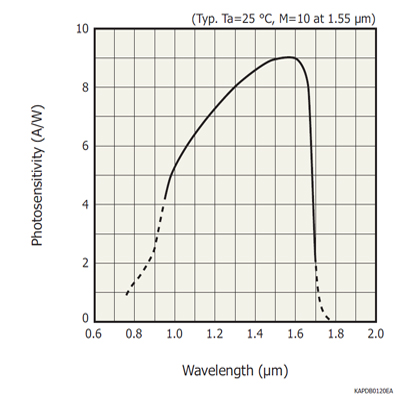

Spectral response

Dimensional outline (unit: mm)
