CERARION Electron multiplier tube

R14747-01

Ceramic channel electron multiplier(CERARION) with connectors and flange. The detector structure is made of lead free ceramic. Input aperture size : 6.6 mm x 7.0 mm, Operating vacuum level : 0.1 Pa

Dynode Stages 1
Dynode Structure Continues
Input Aperture Diameter 6.6 mm x 7.0 mm
Supply Voltage 2000 V
Gain Typ. 3.5 x 106
Rise Time Typ. 2.1 ns
[Max. Rating] Anode to First Dynode Voltage 3600 V
[Max. Rating] Operationg Gain 1.0 x 108
[Max. Rating] Average Anode Current 6 μA
[Max. Rating] Operating Vacuum Level 0.1 Pa

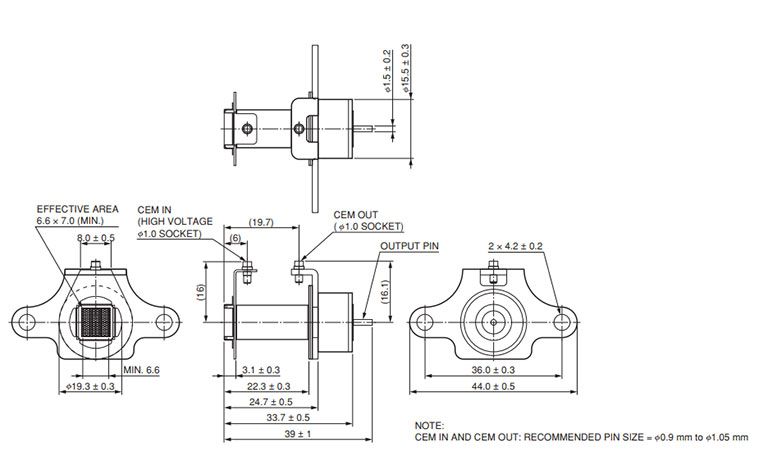

Dimensional outlines (Unit mm)
