CERARION Electron multiplier tube

R14747-80

Ceramic channel electron multiplier(CERARION) with conversion dynode. The detector structure is made of lead free ceramic. Input aperture size : 11 mm dia., Operating vacuum level : 0.01 Pa

Features

  • Composed of Lead-free substances
  • Can measure high mass ions by using conversion dynode
  • Can measure both polarity ions by fast polarity switching of the voltage applied to the conversion dynode

Applications

  • Mass spectrometers (Ion trap MS, QMS, etc.)

Specifications

Dynode Stages 1
Dynode Structure Continues
Input Aperture Diameter Dia. 11 mm
Supply Voltage 2000 V
Gain Typ. 1.0 x 107
Rise Time Typ. 2.1 ns
[Max. Rating] Anode to First Dynode Voltage 3600 V
[Max. Rating] Operationg Gain 1.0 x 108
[Max. Rating] Average Anode Current 6 μA
[Max. Rating] Operating Vacuum Level 0.01 Pa

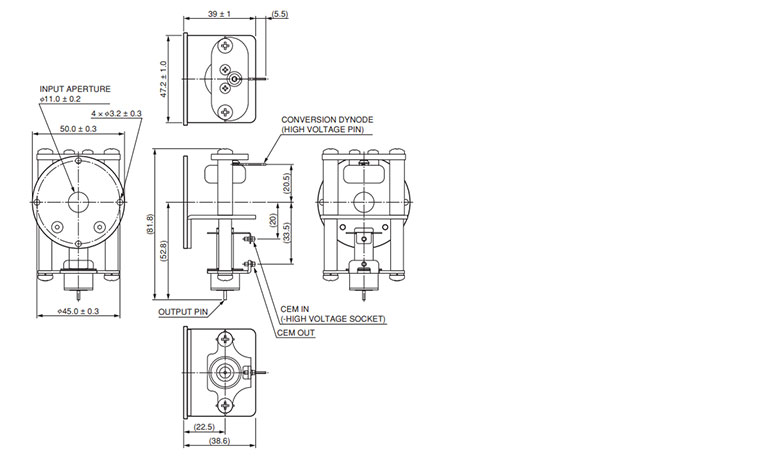

Dimensional outlines (Unit mm)
