CMOS linear image sensor

S10077

Digital output, built-in 8/10-bit AD converter, single power supply operation

S10077 is a CMOS linear image sensor designed for image input applications. The signal processing circuit has a charge amplifier with excellent input/output characteristics. The circuit also includes a 8-bit/10-bit AD converter.


Features
- Pixel pitch: 14 μm Pixel height: 50 μm
- Number of pixels: 1024 ch
- Single power supply operation: 3.3 to 5 V
- On-chip charge amplifier with excellent input/output characteristics
- Built-in timing generator allows operation with only start and clock pulse inputs
- Video data rate: 1 MHz max.
- Spectral response range: 400 to 1000 nm
- Digital output
- 8-bit/10-bit switchable ADC
- Simultaneous all-pixel integration and variable integration time function
- Low power consumption

Type Digital output type
Image size 14.336 x 0.05 mm
Number of effective pixels 1024 x 1 pixels
Pixel size 14 x 50 μm
Spectral response range 400 to 1000 nm
Line rate (max.) 972 lines/s
Cooling Non-cooled
Window material Tempax
Package LCP
Measurement condition Typ. Ta=25 ℃, unless otherwise noted

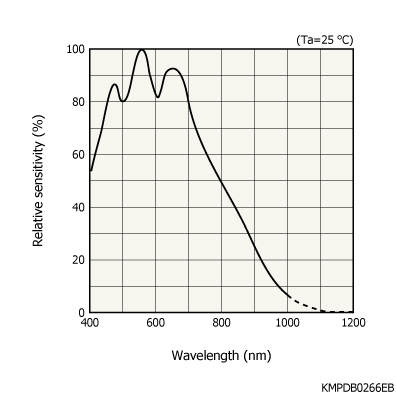

Spectral response
