CMOS linear image sensor

S11105

High-speed video data rate: 50 MHz

The S11105 is a CMOS linear image sensor that delivers a video data rate of 50 MHz.


Features
-Video data rate: 50 MHz max.
-Pixel size: 12.5 × 250 μm
-512 pixels
-Simultaneous charge integration for all pixels
-Variable integration time function (electronic shutter function)
-Single 5 V power supply operation
-Built-in timing generator allows operation with only start and clock pulse inputs
-DIP (dual inline package) type

Type High-speed readout type
Image size 6.4 x 0.25 mm
Number of effective pixels 512 x 1 pixels
Pixel size 12.5 x 250 μm
Spectral response range 400 to 1000 nm
Line rate (max.) 88652 lines/s
Cooling Non-cooled
Window material Tempax
Package Ceramic
Measurement condition Typ. Ta=25 ℃, Vdd=5 V, V(CLK)=V(ST)=5 V, f(CLK)=50 MHz, unless otherwise noted

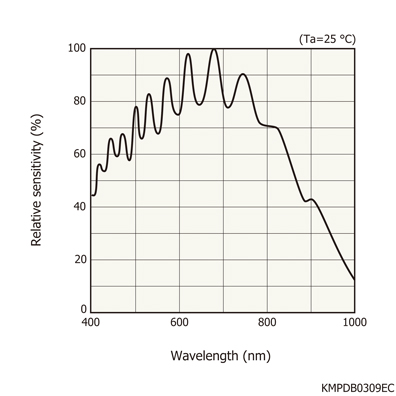

Spectral response

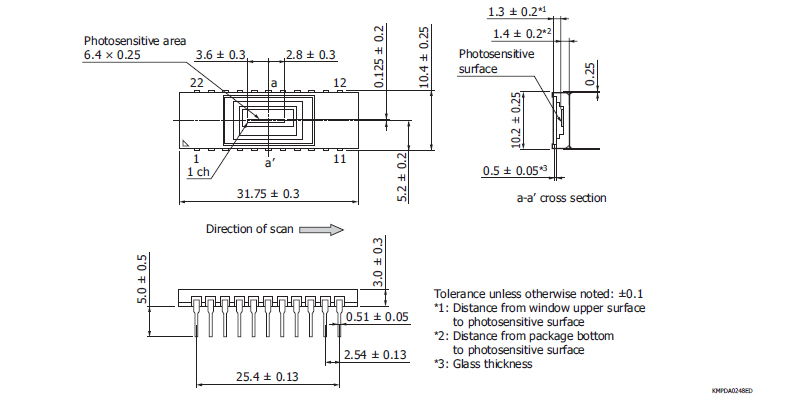

Dimensional outline (unit: mm)
