CMOS linear image sensor

S11637-1024Q

Built-in electronic shutter function and gain switching function

The S11637 series are CMOS linear image sensors with electronic shutter function and gain switching function. The S11637 series has a pixel pitch that is one-half that of our previous type (S10453 series).


Features
-Electronic shutter function
-Gain switching function
-Readout speed: 10 MHz max.
-Voltage output type
-5 V single power supply operation
-Simultaneous charge integration for all pixels
-Built-in timing generator allows operation with only start and clock pulse inputs.
-Spectral response range: 200 to 1000 nm

Type High-speed readout type
Image size 12.8 x 0.5 mm
Number of effective pixels 1024 x 1 pixels
Pixel size 12.5 x 500 μm
Spectral response range 200 to 1000 nm
Line rate (max.) 9487 lines/s
Cooling Non-cooled
Window material Quartz
Package Ceramic

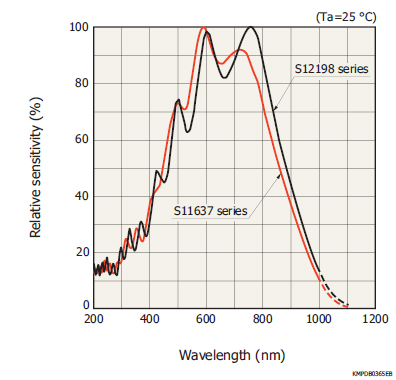

Spectral response

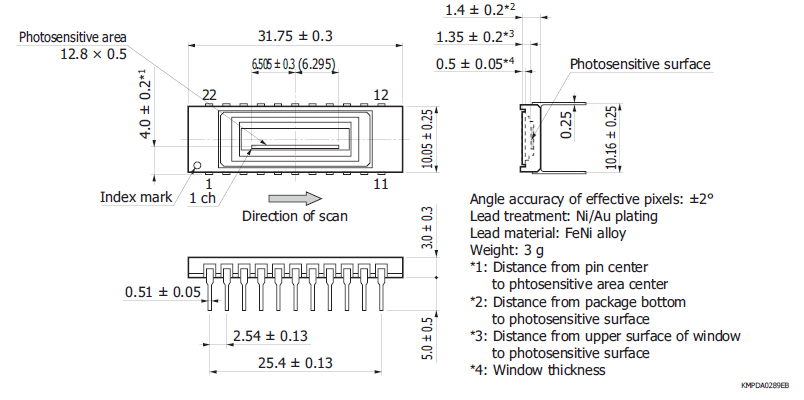

Dimensional outline (unit: mm)
