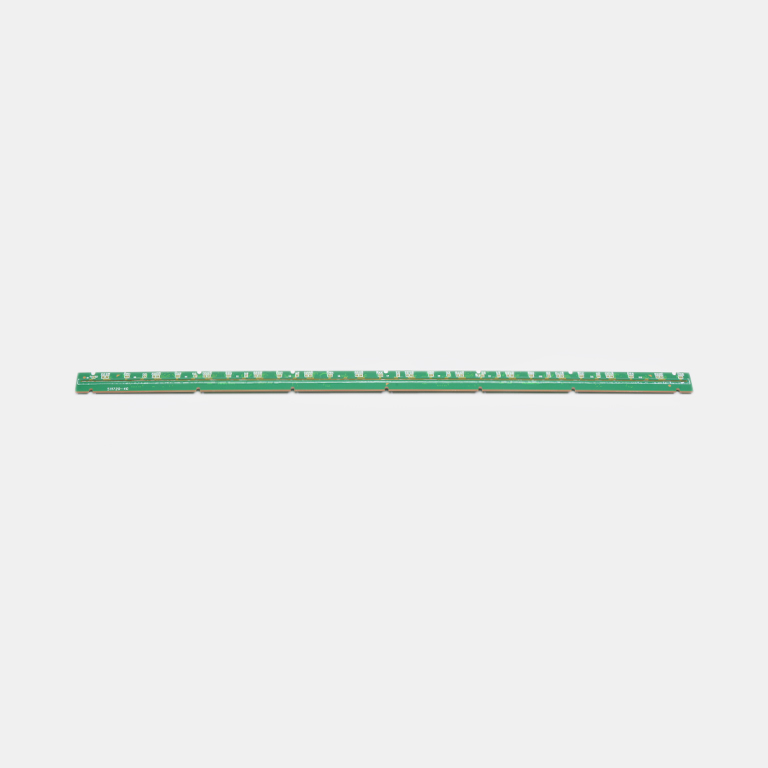

CMOS linear image sensor

S11720-20

Long photosensitive area image sensors with CMOS chips arranged in a single row



The S11720 series is a CMOS linear image sensor developed for close contact optical systems. This long photosensitive area image sensor with CMOS chips arranged in a row allows a wide range of readout with one camera unit [195 mm (S11720-20), 390 mm (S11720-40)]. It also enables high sensitivity (40800 V/lx・s) and high-speed readout (45.4 klines/s).




Features
-Pixel size: 127 × 127 μm
-Number of pixels: 1536 (256 × 6 chips)
-Effective photosensitive area length: 194.97 mm
-High-speed readout: 45.4 klines/s
-High sensitivity: 40800 V/lx·s (gain=8)
-Simultaneous integration of all pixels
-5 V power supply operation
-SPI communication function
-Built-in 16-bit A/D converter

Type High-speed readout type
Image size 194.972 × 0.127 mm
Number of effective pixels 1536 x 1 pixels
Pixel size 127 x 127 μm
Spectral response range 400 to 1000 nm
Line rate (max.) 45400 lines/s
Cooling Non-cooled
Window material Silicone resin
Package Glass epoxy

Spectral response

Dimensional outline (unit: mm)
