CCD linear image sensor

S12379

Pixel size: 8 × 8 μm, 4-port readout,
front-illuminated CCD with high-speed response and high sensitivity



The S12379 is a high-speed line rate, front-illuminated CCD linear image sensor designed for machine vision cameras.


Features
-Pixel size: 8 × 8 μm
-2048 pixels
-High-speed multiport readout (Readout speed: 40 MHz max. × 4 ports)
-Line, pixel binning, area scanning
-High CCD node sensitivity: 21 μV/e- typ.
-Anti-blooming function



Type Standard type
Image size 16.384 x 0.008 mm
Number of effective pixels 2048 x 1 pixels
Pixel size 8 x 8 μm
Spectral response range 200 to 1000 nm
Line rate (typ.) 36000 lines/s
Line rate (max.) 72000 lines/s
Dark current (typ.) 30 e-/pixel/s
Readout noise (typ.) 20 e- rms
Cooling Non-cooled
Window material Quartz
Package Ceramic
Measurement condition Typ. Ta=25 ℃, unless otherwise noted

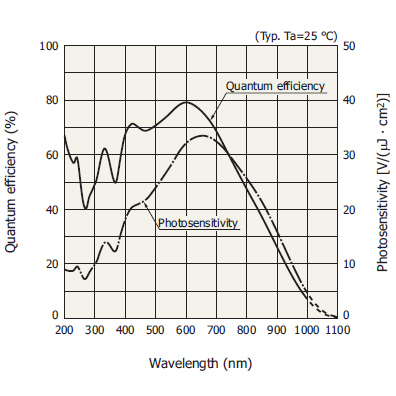

Spectral response
