CMOS linear image sensor

S12706

High sensitivity, photosensitive area with minute pixels

The S12706 is a high sensitivity CMOS linear image sensor using a photosensitive area with minute pixels. it has a long photosensitive area (effective photosensitive area length: 28.672 mm) consisting of 4096 pixels, each with a pixel size of 7 x 7 μm.


Features
-Pixel size: 7 × 7 μm
-4096 pixels
-Effective photosensitive area length: 28.672 mm
-High sensitivity: 23 V/(lx・s)
-Simultaneous charge integration for all pixels
-Variable integration time function (electronic shutter function)
-5 V single power supply operation
-Built-in timing generator allows operation with only start and clock pulse inputs
-Video data rate: 10 MHz max.

Type High sensitivity type
Image size 28.672 x 0.007 mm
Number of effective pixels 4096 x 1 pixels
Pixel size 7 x 7 μm
Spectral response range 400 to 1000 nm
Line rate (max.) 2387 lines/s
Cooling Non-cooled
Window material Broslicate glass
Package LCP
Measurement condition Typ. Ta=25 ℃, Vdd=5 V, V(CLK)=V(ST)=5 V, f(CLK)=10 MHz, unless otherwise noted

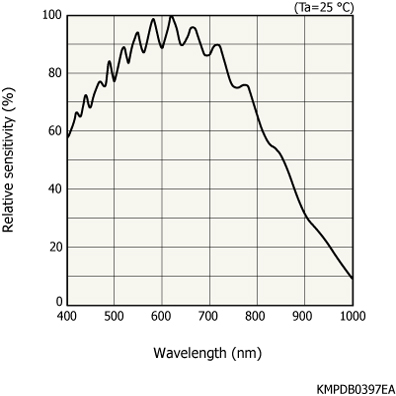

Spectral response
