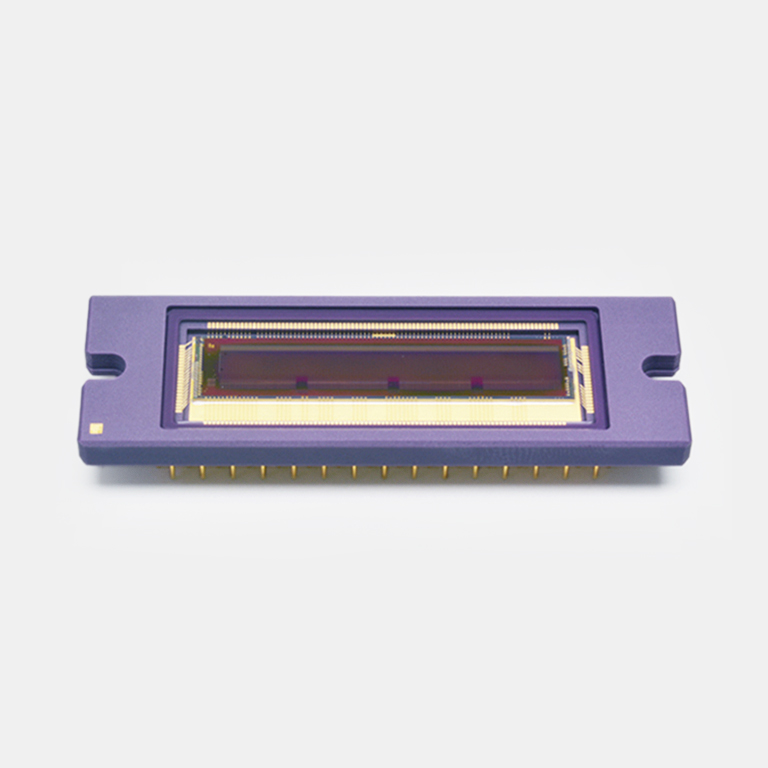

CMOS linear image sensor

S13774

High-speed readout (100 klines/s)



The S13774 is a CMOS linear image sensor developed for industrial cameras that require high-speed scanning. The column-parallel readout system, which has a readout amplifier and an A/D converter for each pixel, allows high-speed readout. For the A/D converter resolution, either 10-bit (high-speed mode: 100 klines/s max.) or 12-bit (low-speed mode: 25 klines/s max.) can be selected. Image data is output serially in 180 MHz LVDS format.




Features
-Pixel size: 7 × 7 μm
-Number of pixels: 4096
-High-speed readout: 100 klines/s
-Simultaneous integration of all pixels
-3.3 V power supply operation
-SPI communication function
-Built-in 10-bit/12-bit A/D converters

Type High-speed readout type
Image size 28.672 × 0.007 mm
Number of effective pixels 4096 x 1 pixels
Pixel size 7 x 7 μm
Spectral response range 400 to 1000 nm
Line rate (max.) 100000 lines/s
Cooling Non-cooled
Window material Broslicate glass
Package Ceramic
Measurement condition Line rate: high-speed mode

Spectral response

Dimensional outline (unit: mm)
