CCD area image sensor


Improved etaloning characteristics, Low noise type, High UV resistance

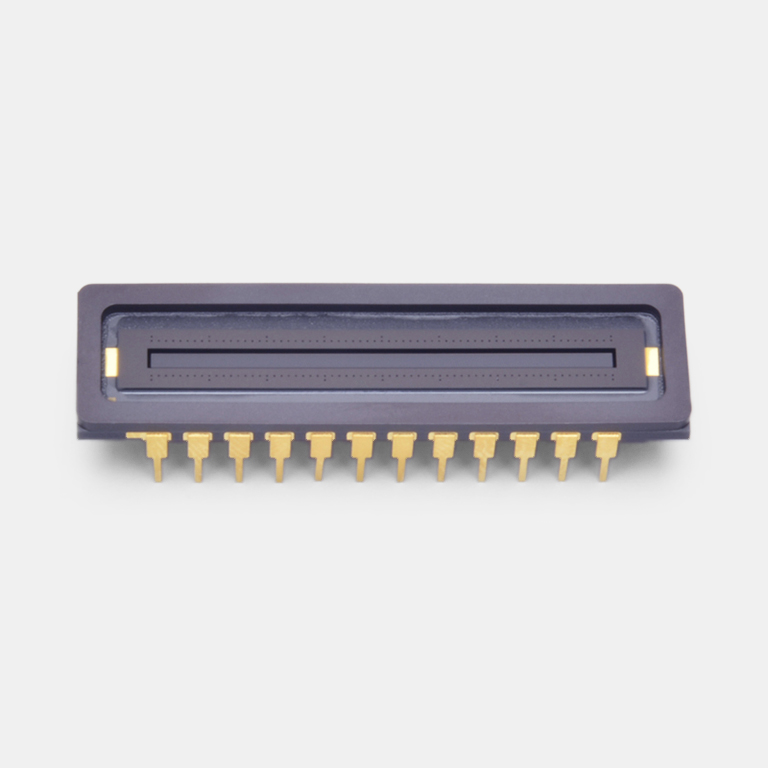

The S10420-1106NW-01 is a back-thinned CCD image sensor designed for spectrometers. Two types consisting of a high-speed type (S11071 series) and low noise type (S10420-01 series) are available with improved etaloning characteristics. The S10420-1106NW-01 offers nearly flat spectral response characteristics with high quantum efficiency from the UV to near infrared region.

-Improved etaloning characteristics
-High sensitivity over a wide spectral range and nearly flat spectral response characteristics
-High CCD node sensitivity: 6.5 uV/e-
-High full well capacity and wide dynamic range
-Pixel size: 14 × 14 μm
-High UV resistance

Type Binning type
Low etaloning type
Image size 28.672 x 0.896 mm
Number of effective pixels 2048 x 64 pixels
Pixel size 14 x 14 μm
Spectral response range 120 to 1100 nm
Line rate (typ.) 106 lines/s
Line rate (max.) 200 lines/s
Dark current (typ.) 50 e-/pixel/s
Readout noise (typ.) 6 e- rms
Cooling Non-cooled
Window material None (temporary window)
Package Ceramic
Dedicated driver circuit C11287
Measurement condition Typ. Ta=25 ℃, unless otherwise noted, Frame rate: full line binning
