CCD area image sensor

S11071-1004

Improved etaloning characteristics, High-speed type

The S11071-1004 is a back-thinned CCD image sensor designed for spectrometers. High-speed type is available with improved etaloning characteristics. The S11071-1004 offer nearly flat spectral response characteristics with high quantμm efficiency from the UV to near infrared region.


Features
-Improved etaloning characteristics
-High sensitivity over a wide spectral range and nearly flat spectral response characteristics
-High CCD node sensitivity: 8 uV/e-
-High full well capacity and wide dynamic range
-Pixel size: 14 × 14 μm

Type Binning type
Low etaloning type
Image size 14.336 x 0.224 mm
Number of effective pixels 1024 x 16 pixels
Pixel size 14 x 14 μm
Spectral response range 200 to 1100 nm
Line rate (typ.) 1777 lines/s
Line rate (max.) 6693 lines/s
Dark current (typ.) 50 e-/pixel/s
Readout noise (typ.) 23 e- rms
Cooling Non-cooled
Package Ceramic
Dedicated driver circuit C11288-01
Measurement condition Typ. Ta=25 ℃, unless otherwise noted, Frame rate: full line binning

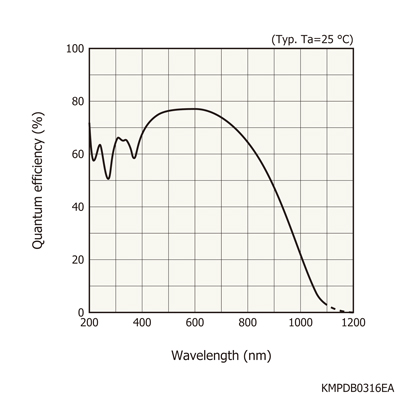

Spectral response

Dimensional outline (unit: mm)
