NMOS linear image sensor
NMOS linear image sensors are self-scanning photodiode arrays designed specifically as detectors for multichannel spectroscopy. The scanning circuit is made up of N-channel MOS transistors, operates at low power consumption and is easy to handle. Each photodiode has a large active area, high UV sensitivity yet very low noise, delivering a high S/N even at low light levels. NMOS linear image sensors also offer excellent output linearity and wide dynamic range. The photodiode of S3902-256Q has a height of 0.5 mm and is arrayed in a row at a spacing of 50 μm. Quartz glass is the standard window material.
|Type||Current output type
|Image size||12.8 x 0.5 mm|
|Number of effective pixels||256 x 1 pixels|
|Pixel size||50 x 500 μm|

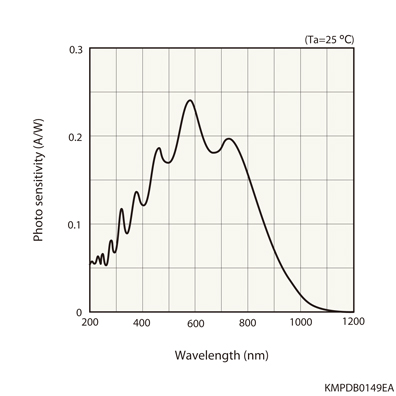

|Spectral response range||200 to 1000 nm|
|Line rate (max.)||7800 lines/s|
|Dedicated driver circuit||C7884, C7884G, C7884-01, C7884G-01, C8892|
|Measurement condition||Typ. Ta=25 ℃, unless otherwise noted
Saturation charge: Vb=2.0 V, Vφ=5.0 V
