NMOS linear image sensor

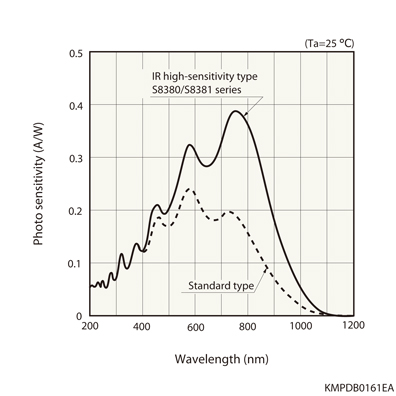

The S8380-128Q is designed to have higher sensitivity in the infrared and soft X-ray regions when compared to standard NMOS linear image sensors. The peak sensitivity wavelength is in the near IR region (λp=750 nm). The photodiode of S8380-128Q has a height of 2.5 mm and is arrayed in a row at a spacing of 50 μm. Quartz glass is the standard window material.
|Type||Current output type
(Infrared enhanced type)
|Image size||6.4 x 2.5 mm|
|Number of effective pixels||128 x 1 pixels|
|Pixel size||50 x 2500 μm|
|Spectral response range||200 to 1000 nm|
|Line rate (max.)||15600 lines/s|
|Dedicated driver circuit||C7884, C7884G, C7884-01, C7884G-01, C8892|
|Measurement condition||Typ. Ta=25 ℃, unless otherwise noted
Saturation charge: Vb=2.0 V, Vφ=5.0 V
