Driver circuit for CCD image sensor

C15361-2105

For CCD image sensor (S15254/S15257-2048)



The C15361-2105 is a driver circuit developed for Hamamatsu CCD linear image sensors (S15254/S15257-2048). It consists of a CCD driver circuit, an analog video signal processing circuit (16-bit A/D converter), timing generator, control circuit, and power supply, and converts analog video signals received from an image sensor into digital signals and outputs them. By connecting USB 3.1 Gen 1 connector to a PC, it is possible to control the C15361-2105 and obtain data. The C15361-2105 has an SMA connector for external trigger input and an SMA connector for pulse output that can be used to synchronize with external devices. In addition, this product comes with application software that runs on Windows® 10 (32-bit, 64-bit). It can be used to easily operate the C15361-2105 from the PC.


Features
-Built-in 16-bit A/D converter
-Interface: USB 3.1 Gen 1
-Power supply: USB bus powered (DC +5 V)
-External synchronization operation capable
-Compatible with sensor with high-speed electronic shutter function

Output USB 3.1 Gen1

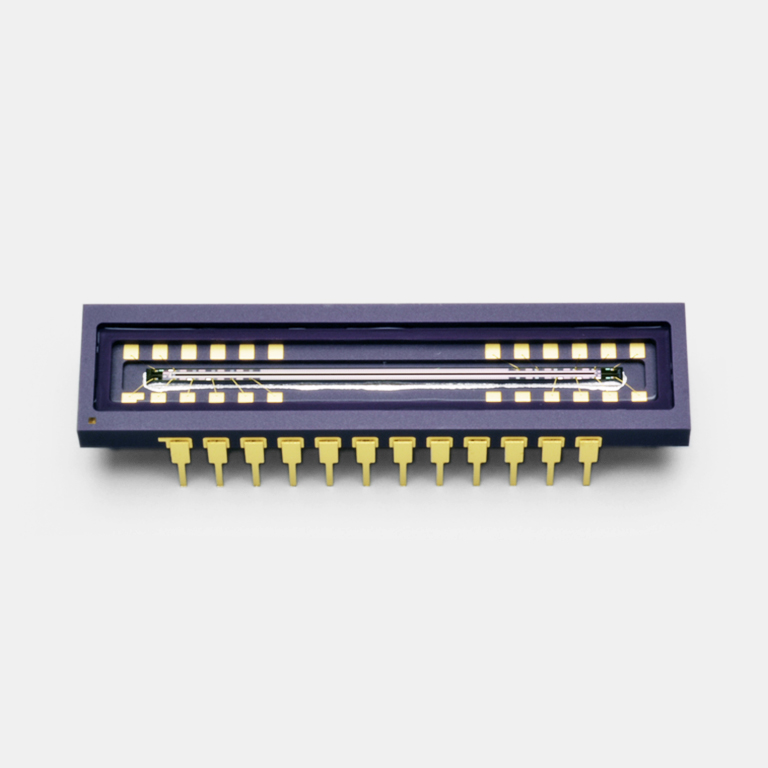

Suitable sensor S15254, S15257-2048
Image sensor sold separately

Dimensional outline (unit: mm)
