InAs photovoltaic detector

P10090-01

Low noise, high reliability infrared detectors (for 3 μm band)



InAs photovoltaic detectors have high sensitivity in the infrared region around 3 μm as with PbS photoconductive detectors, and also feature low noise, high speed and high reliability. P10090-01 is a non-cooled InAs photovoltaic detector.


Features
-Low noise
-High detectivity
-High reliability
-Available in multi-element arrays (custom product)



Photosensitive area φ1 mm
Number of elements 1
Package Metal
Cooling Non-cooled
Cutoff wavelength (typ.) 3.65 μm
Peak sensitivity wavelength (typ.) 3.35 μm
Photosensitivity (typ.) 1 A/W
Detectivity D* (typ.) 4.5 × 109 cm・Hz1/2/W
Rise time (typ.) 0.7 μs
Measurement condition Typ., unless otherwise noted

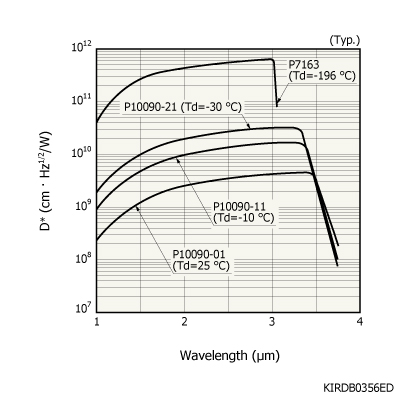

Spectral response

Dimensional outline (unit: mm)
