InAs photovoltaic detector
InAs photovoltaic detectors have high sensitivity in the infrared region around 3 μm as with PbS photoconductive detectors, and also feature low noise, high speed and high reliability. The P10090-11 is a one-stage TE-cooled InAs photovoltaic detector.
-Available in multi-element arrays (custom product)
|Photosensitive area||φ1 mm|
|Number of elements||1|
|Cutoff wavelength (typ.)||3.55 μm|
|Peak sensitivity wavelength (typ.)||3.3 μm|
|Photosensitivity (typ.)||1.2 A/W|

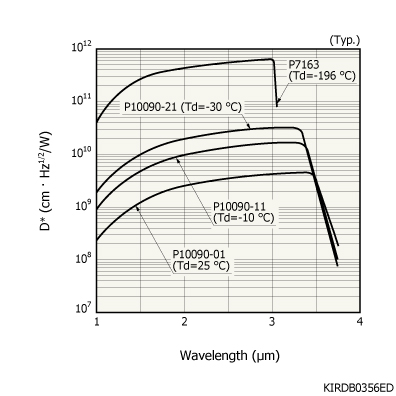

|Detectivity D* (typ.)||1.6 × 1010 cm・Hz1/2/W|
|Rise time (typ.)||0.45 μs|
|Measurement condition||Typ., unless otherwise noted|
