InAsSb photovoltaic detector

P12691-201G

High-speed response and high sensitivity in the 8 μm spectral band, Thermoelectrically cooled infrared detector with no liquid nitrogen required



The P12691-201G is an infrared detector that provides high sensitivity in the 8 μm spectral band by employing our unique crystal growth technology, back-illuminated structure and integrating a lens. The InAsSb photovoltaic detector has a PN junction that ensures high-speed response and high reliability. Typical applications include gas analysis such as NO, NO2, SO2, and H2S. The P12691-201G is easy to use as it uses a compact package (TO-8) not requiring liquid nitrogen.


Features
-High-speed response
-High sensitivity
-High reliability
-Compact, thermoelectrically cooled TO-8 package
-RoHS compliant
-Can be assembled in a module with QCL



Photosensitive area φ1 mm
Number of elements 1
Package category TO-8
Package Metal
Cooling Two-stage TE-cooled
Cutoff wavelength (typ.) 8.3 μm
Peak sensitivity wavelength (typ.) 6.7 μm
Photosensitivity (typ.) 1.2 A/W
Detectivity D* (typ.) 6.0×109 cm・Hz1/2/W
Noise equivalent power (typ.) 1.5×10-11 W/Hz1/2
Measurement condition Td=-30℃, Detectivity D*: λ=λp, fc=1200 Hz, Δf=1 Hz

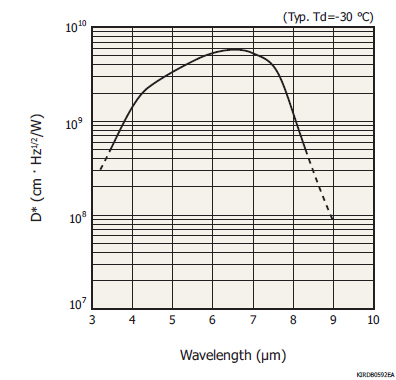

Spectral response

Dimensional outline (unit: mm)
