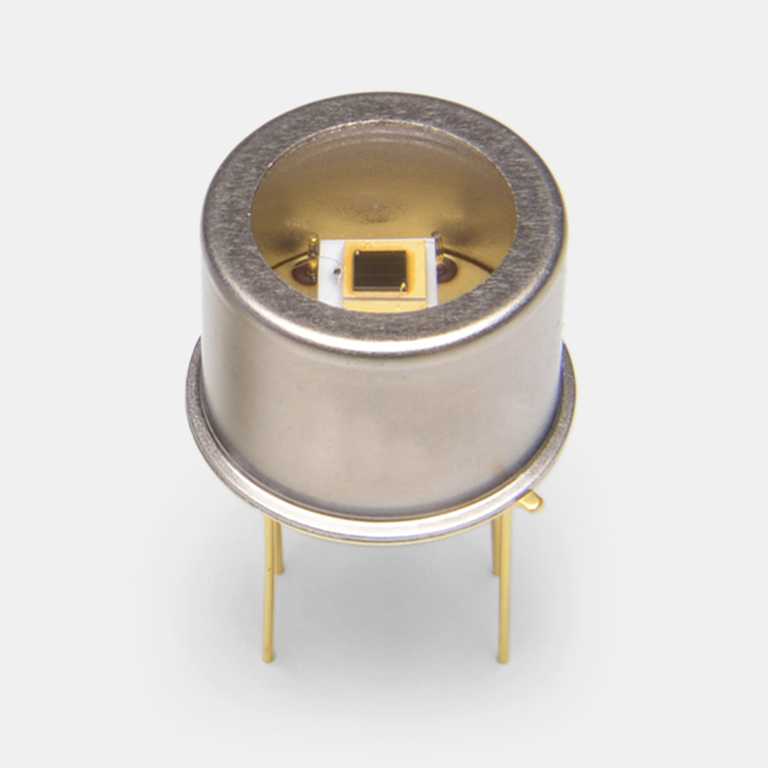

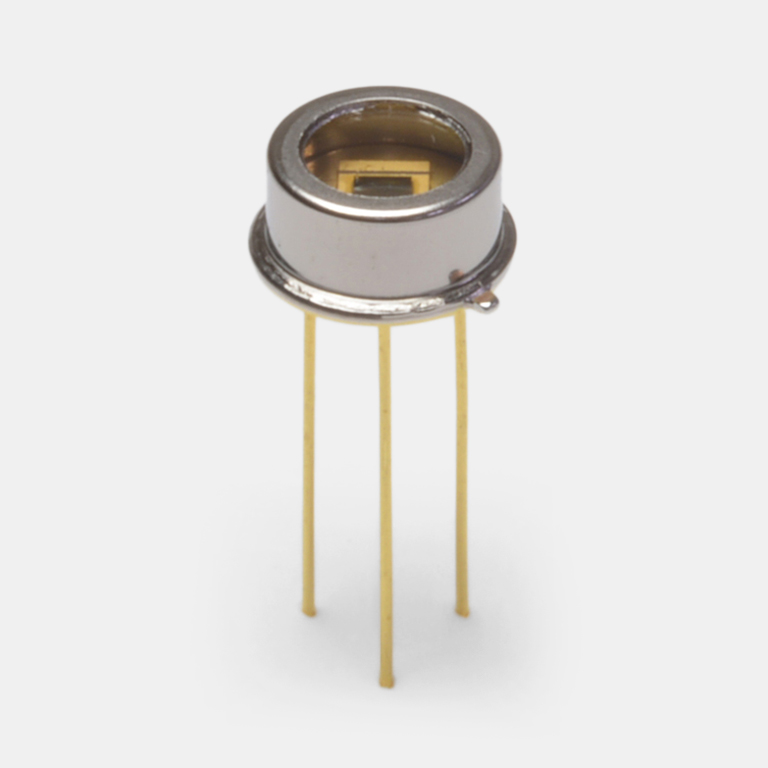

InAsSb photovoltaic detector
The P13243-122MS is a photovoltaic type infrared detectors that has achieved high sensitivity in the spectral band up to 5 μm using Hamamatsu original crystal growth technology and process technology. P13243 series are environmentally friendly infrared detectors and do not use lead, mercury or cadmium, which are substances restricted by the RoHS Directive. They are replace-ments for previous products that contain these substances. The P13243-122MS is a one-stage TE-cooled type, which deliver stable high S/N measurement through their large photosensitive area.
|Photosensitive area||2×2 mm|
|Number of elements||1|
|Cutoff wavelength (typ.)||5.2 μm|
|Peak sensitivity wavelength (typ.)||4.1 μm|
|Photosensitivity (typ.)||0.0086 A/W|
|Detectivity D* (typ.)||1.9×109 cm・Hz1/2/W|
|Noise equivalent power (typ.)||1.0×10-10 W/Hz1/2|
|Rise time (typ.)||100 ns|
|Terminal capacitance (typ.)||20 pF|
|Measurement condition||Ta=25℃, Detectivity D*: λ=λp, fc=1200 Hz, Δf=1 Hz|
