Two-color detector

K12728-010K

Wide spectral response range: 0.32 to 1.65 μm, Compact ceramic package



The K12728-010K is a two-color detector in a compact ceramic package, covering a wide spectral response range. Like the current K1713-09, it incorporates an infrared-transmitting Si photodiode mounted over an InGaAs PIN photodiode, along the same optical axis. It features low noise and low dark current and supports reflow soldering.


Features
-Wide spectral response range
-Compact, low noise, low dark current
-Supports reflow soldering



Package Ceramic
Package Category miniature
Cooling Non-cooled
Spectral response range 0.32 to 1.65 μm
Detector (1) Si
Photosensitive area (1) 2.4×2.4 mm
Peak sensitivity wavelength (typ.) (1) 0.96 μm
Photosensitivity (typ.) (1) 0.45 A/W
Detector (2) InGaAs
Photosensitive area (2) φ1 mm
Peak sensitivity wavelength (typ.) (2) 1.55 μm
Photosensitivity (typ.) (2) 0.55 A/W
Measurement condition Ta=25 ℃

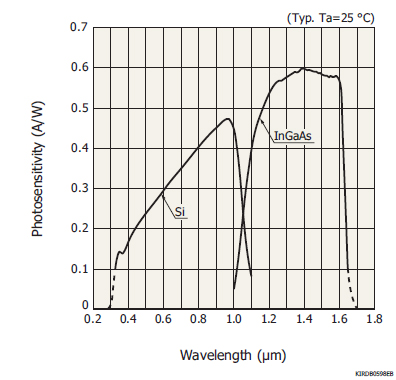

Spectral response

Dimensional outline (unit: mm)
