Two-color detector

K12729-010K

Wide spectral response range: 0.9 to 2.55 μm, Compact ceramic package

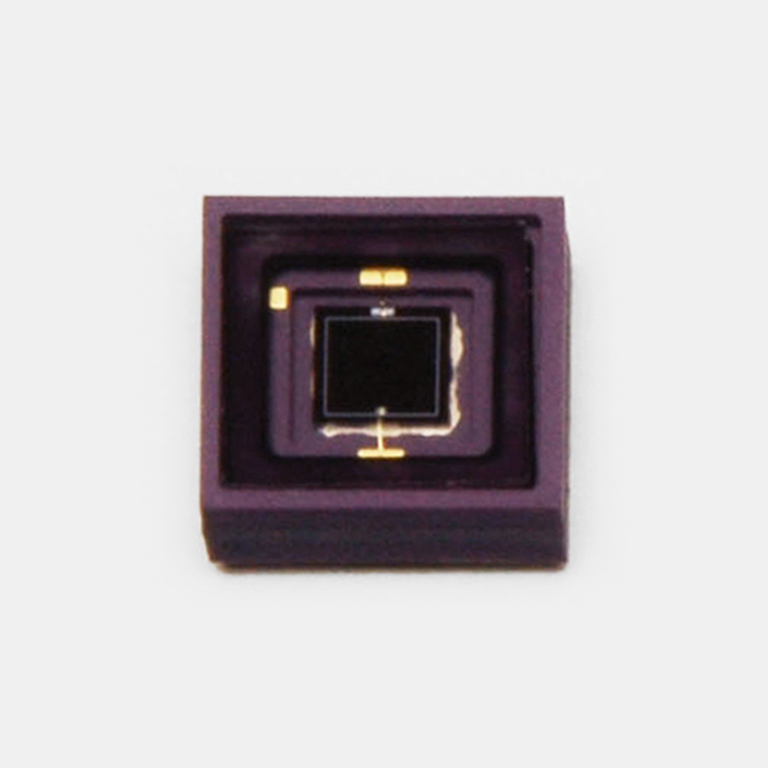

The K12729-010K is a two-color detector in a compact ceramic package, covering a wide spectral response range. Like the current K11908-010K, it incorporates two InGaAs PIN photodiodes with different spectral response, along the same optical axis. It features low noise and low dark current and supports reflow soldering.


Features
-Wide spectral response range
-Compact, low noise, low dark current
-Supports reflow soldering



Package Ceramic
Package Category Miniature
Cooling Non-cooled
Spectral response range 0.9 to 2.55 μm
Detector (1) InGaAs
Photosensitive area (1) 2.4×2.4 mm
Peak sensitivity wavelength (typ.) (1) 1.55 μm
Photosensitivity (typ.) (1) 0.95 A/W
Cutoff frequency (typ.) (1) 2 MHz
Detector (2) InGaAs
Photosensitive area (2) φ1.0 mm
Peak sensitivity wavelength (typ.) (2) 2.1 μm
Photosensitivity (typ.) (2) 1 A/W
Cutoff frequency (typ.) (2) 6 MHz
Measurement condition Ta=25 ℃

Spectral response

Dimensional outline (unit: mm)
