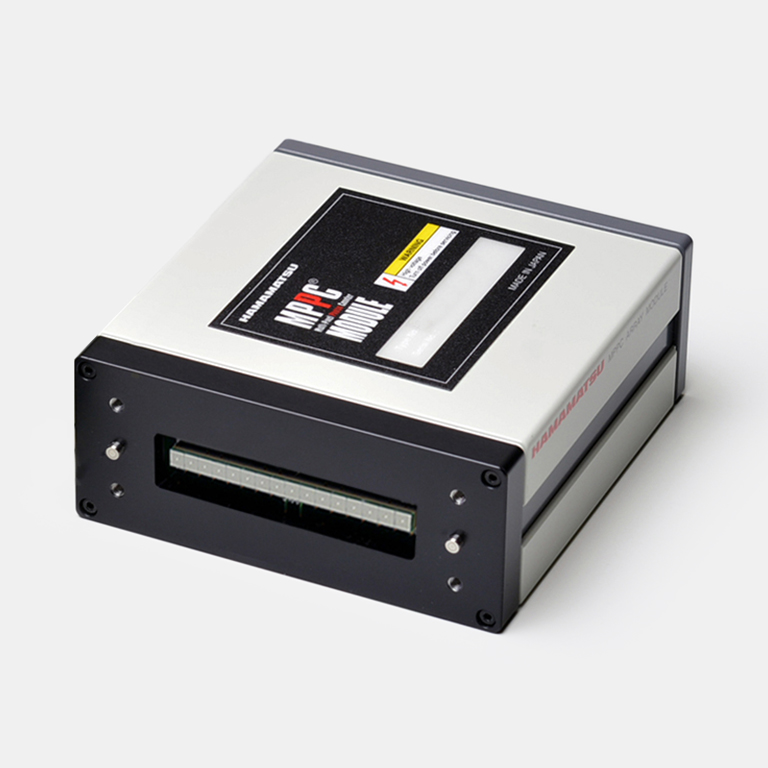

The C13369-3050EA-04 is an optical measurement module with an MPPC array that can detect very-low-level light (analog output type). The module consists of a 16 ch MPPC array, an amplifier, and a high-voltage power supply circuit. It has a photosensitive area of 3 × 3 mm. The signal output type of these MPPC module is 16 ch analog. You can simply connect an external power supply (±5 V) to use this module.
- Built-in MPPC array (4 × 4 ch)
- High sensitivity in the short wavelength range
- Low noise equivalent power
- Built-in temperature compensation function
-Compact and lightweight
- Analog output
|Effective photosensitive area/ch||3 x 3 mm|
|Number of pixels/ch||3584|
|Number of channels||16 (4 x 4) ch|
|Pixel pitch||50 μｍ|
|Measurement condition||Ta=25 ℃|
