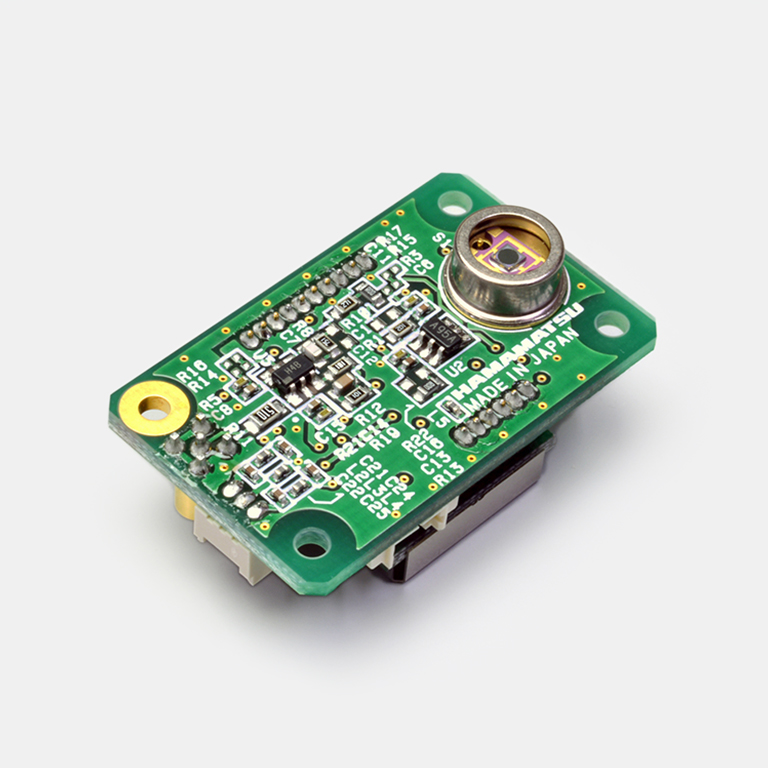

MPPC module

C14452-3050GA

Optical measurement modules for low-level-light detection, Analog output



The C14452-3050GA is an optical measurement module capables of detecting low-level light using its built-in MPPC for the visible to near infrared region. This module consists of an MPPC, an amplifier, a high-voltage power supply circuit, and a temperature control circuit. The photosensitive area is ϕ3 mm, and the signal output is analog. The module operates just by supplying an external power supply (±5 V).


Features
-For the visible to near infrared region
-Low noise equivalent power
-Built-in temperature control function
-Compact and lightweight
-Analog output



Built-in sensor S14422-1550MG
Cooling Non-cooled
Effective photosensitive area/ch φ3 mm
Number of pixels/ch 2836
Number of channels 1 ch
Pixel pitch 50 μm
Note Analog output
Measurement condition Ta=25 ℃

Dimensional outline (unit: mm)
