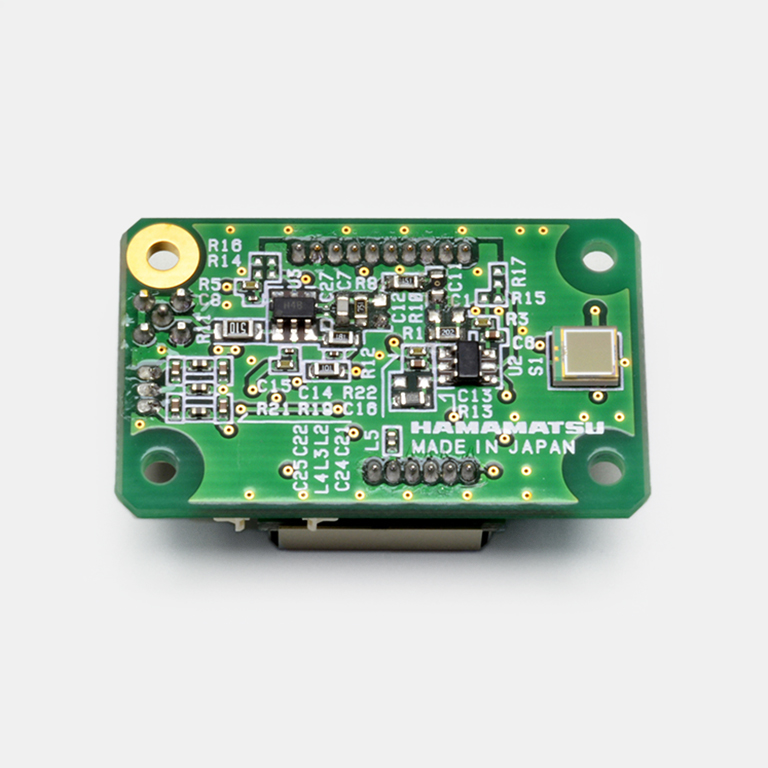

The C15522-3015SA is an optical measurement module capable of detecting low-level light using its built-in MPPC that features wide dynamic range. This module consists of an MPPC, an ampliﬁer, a high-voltage power supply circuit, and a temperature control circuit. The photosensitive area is 3 × 3 mm, and the signal output is analog. The module operates just by connecting them to an external power supply (±5 V).
-Built-in wide dynamic range type MPPC
-High sensitivity in the short wavelength range
-Low noise equivalent power
-Built-in temperature control function
-Compact and lightweight
|Effective photosensitive area/ch||3 × 3 mm|
|Number of pixels/ch||39984|
|Number of channels||1 ch|
|Pixel pitch||15 μｍ|
|Measurement condition||Ta=25 ℃|
