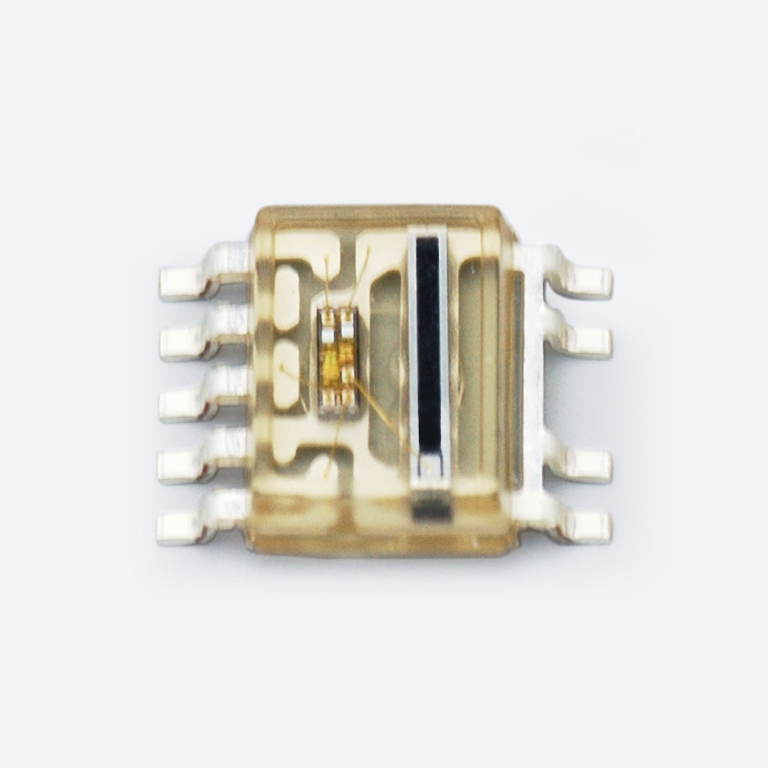

Photo IC for laser beam sync detection

S9703-11

High sensitivity, high-speed response

The S9703-11 photo IC uses a high-speed PIN photodiode designed for laser beam synchronous detection. When compared to S9703 and S9703-01 previously marketed, S9703-11 has reduced its reflection effects in the package.


Features
-High sensitivity (Current amplifier gain: 6 times)
-Digital output
-Small package
-Suitable for lead-free solder reflow
-Active area: 2.84 × 0.5 mm

Package Plastic
Package type Surface mount type
Number of elements 1
Operating Supply voltage 5 V
Type Standard type
Measurement condition Ta=25 ℃, unless otherwise noted

Dimensional outline (unit: mm)
