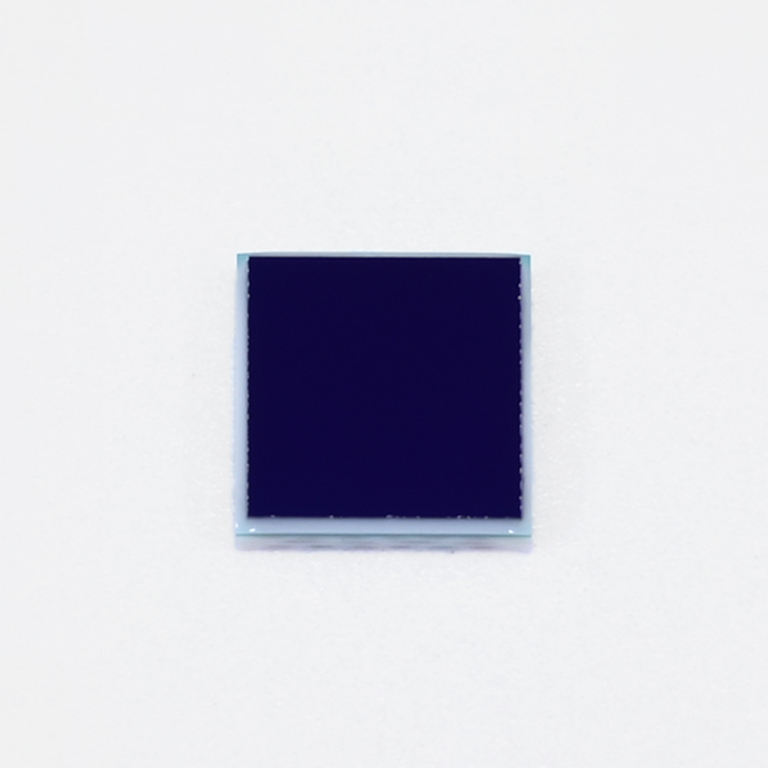

A scintillator can be coupled directly on the chip by using a back-illuminated photodiode. It is designed with minimal dead space around the product. This makes it possible to arrange multiple products side by side.
|Photosensitive area||7.05 × 7.05 mm|
|Number of elements||1|
|Reverse voltage (max.)||10 V|
|Spectral response range||400 to 1100 nm|
|Peak sensitivity wavelength (typ.)||960 nm|
|Photosensitivity (typ.)||0.61 A/W|
|Dark current (max.)||1000 pA|
|Rise time (typ.)||15 μs|
|Terminal capacitance (typ.)||500 pF|
|Measurement condition||Typ. Ta=25 ℃, Photosensitivity: λ=920 nm, Dark current: VR=10 mV, Terminal capacitance: VR=0 V, f=10 kH, unless otherwise noted|
