Si PIN photodiode

S5971

High-speed response (100 MHz)

The S5971 is a high-speed Si PIN photodiode designed for visible to near infrared light detection. This photodiode provides wideband characteristics at a low bias, making them suitable for optical communications and other high-speed photometry.


Features
-High-speed response: 100 MHz (VR=10 V)
-Low price
-High reliability

Photosensitive area φ1.2 mm
Number of elements 1
Package Metal
Package category TO-18
Cooling Non-cooled
Reverse voltage (max.) 20 V
Spectral response range 320 to 1060 nm
Peak sensitivity wavelength (typ.) 920 nm
Photosensitivity (typ.) 0.55 A/W
Dark current (max.) 1000 pA
Cutoff frequency (typ.) 100 MHz
Terminal capacitance (typ.) 3 pF
Noise equivalent power (typ.) 7.4×10-15 W/Hz1/2
Measurement condition Typ. Ta=25 ℃, Photosensitivity: λ=780 nm, Dark current: VR=10 V, Cutoff frequency: VR=10 V, Terminal capacitance: VR=10 V, f=1 MHz, Noise equivalent power: VR=10 V, λ=λp, unless otherwise noted

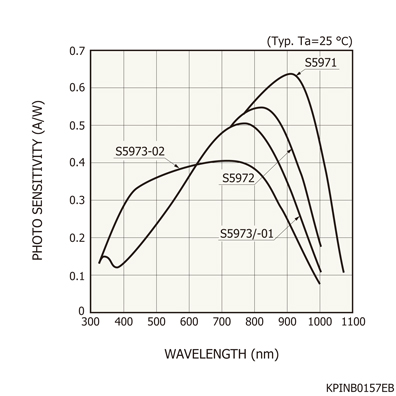

Spectral response

Dimensional outline (unit: mm)
