Si PIN photodiode

S5973-01

Photodiode with mini-lens, high-speed response (1 GHz)

The S5973-01 is a high-speed Si PIN photodiode designed for visible to near infrared light detection. The mini-lens type photodiode can be efficiently coupled to an optical fiber. This photodiode provides wideband characteristics at a low bias, making them suitable for optical communications and other high-speed photometry.


Features
-High-speed response: 1 GHz (VR=3.3 V)
-Low price
-High reliability

Photosensitive area φ0.4 mm
Number of elements 1
Package Metal
Package category TO-18, with lens
Cooling Non-cooled
Reverse voltage (max.) 20 V
Spectral response range 320 to 1000 nm
Peak sensitivity wavelength (typ.) 760 nm
Photosensitivity (typ.) 0.51 A/W
Dark current (max.) 100 pA
Cutoff frequency (typ.) 1000 MHz
Terminal capacitance (typ.) 1.6 pF
Noise equivalent power (typ.) 1.1×10-15 W/Hz1/2
Measurement condition Typ. Ta=25 ℃, Photosensitivity: λ=780 nm, Dark current: VR=10 V, Cutoff frequency: VR=10 V, Terminal capacitance: VR=10 V, f=1 MHz, Noise equivalent power: VR=3.3 V, λ=λp, unless otherwise noted

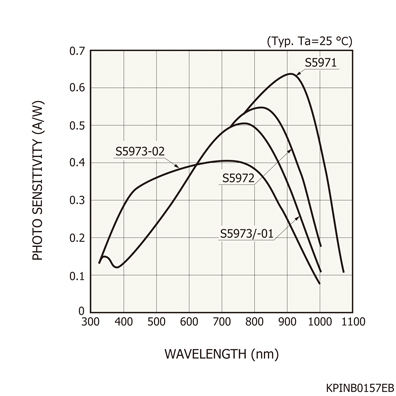

Spectral response

Dimensional outline (unit: mm)
